Product Features
- Dual-Surface Finish: Features a wood grain texture on one side and a fabric grain texture on the reverse, providing two aesthetic options from a single panel.
- SPC Core Composition: Constructed with a Stone Plastic Composite core, delivering dimensional stability and resistance to moisture-induced warping or expansion.
- Interlocking Mechanism: Designed with a tongue-and-groove system for simplified installation and alignment, creating consistent seams.
Product Description

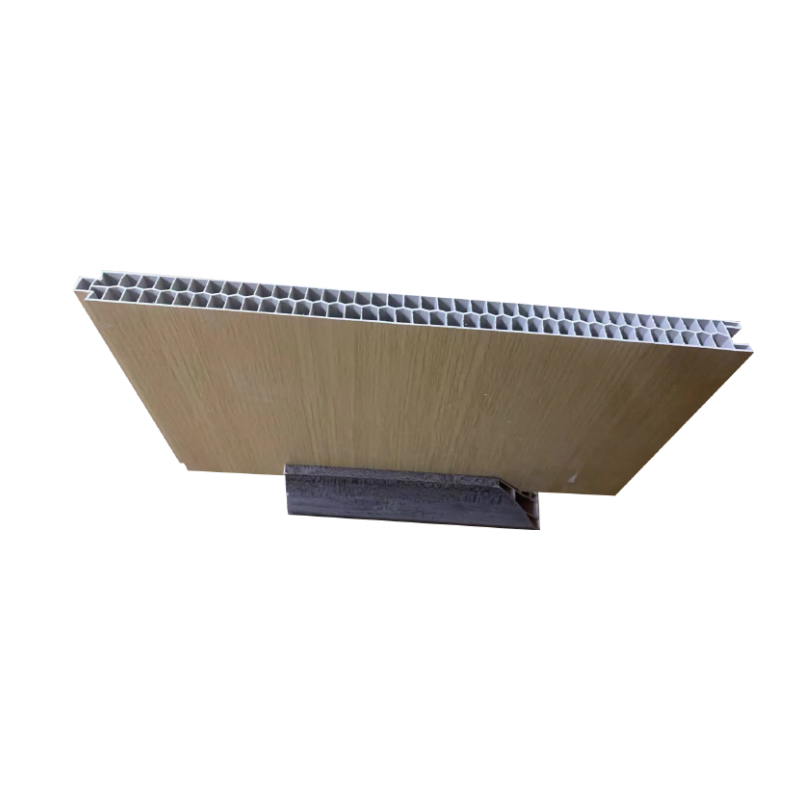

This SPC partition board is engineered for the creation of non-load-bearing interior walls and space divisions. The panel utilizes a rigid Stone Plastic Composite core, which is laminated with decorative and protective surface layers. This construction provides a solution for environments where humidity control is a consideration, as the material's composition mitigates moisture absorption.
The manufacturing process adheres to industry standards for fire-rated building materials, with specific panels meeting defined flame spread and smoke development ratings. The installation process for these partition wall panels is designed for efficiency, requiring standard carpentry tools.
Technical Specifications
| Parameter |
Value / Description |
Standard |
| Core Material |
Stone Plastic Composite (SPC) |
- |
| Panel Thickness |
8 mm / 10 mm |
+0.2 mm tolerance |
| Panel Dimensions (H x W) |
2440 mm x 1220 mm |
±2 mm tolerance |
| Surface Finish |
Double-sided: Wood grain & Fabric grain |
- |
| Density |
1950 kg/m³ |
ASTM D792 |
| Water Absorption Rate |
< 0.2% |
ASTM D570 |
| Fire Rating |
Class B / C (Varies by market) |
ASTM E84 / EN 13501-1 |
| Installation System |
Tongue-and-Groove |
- |
Application Areas
This product is applicable for the following commercial and industrial scenarios:
- Office space division and the creation of modular office partitions.
- Interior wall construction in retail environments and shopping malls.
- Moisture-resistant partitions in hospitality settings, such as hotels and restaurants.
- Lightweight wall systems for educational and healthcare facilities.
FAQ
What is the required framework spacing for installing these SPC partition panels?
The underlying stud or framework should be installed with a maximum center-to-center spacing of 400 mm (16 inches). This spacing is necessary to provide adequate support, prevent panel deflection, and ensure the integrity of the interlocking joint system.
Can these panels be used in areas with high humidity, such as near bathrooms?
Yes. The Stone Plastic Composite core exhibits a very low water absorption rate, making it suitable for use in areas with elevated humidity levels. However, it is not designed for direct and prolonged water exposure or for use in full wet-room applications without appropriate sealing at all joints and edges.
What is the recommended method for cutting and shaping the panels?
Panels can be cut using standard woodworking equipment. A fine-tooth carbide-tipped saw blade is recommended for achieving clean, chip-free edges. For creating openings for electrical outlets or fixtures, a drill and a jigsaw are typically used.
