UV Shield High-Gloss Scratch-Resistant Marble PVC Wall Panel Board

122cm

Width

2.5-15mm

Thickness Range

WPC

Composite Core

7

Length Options

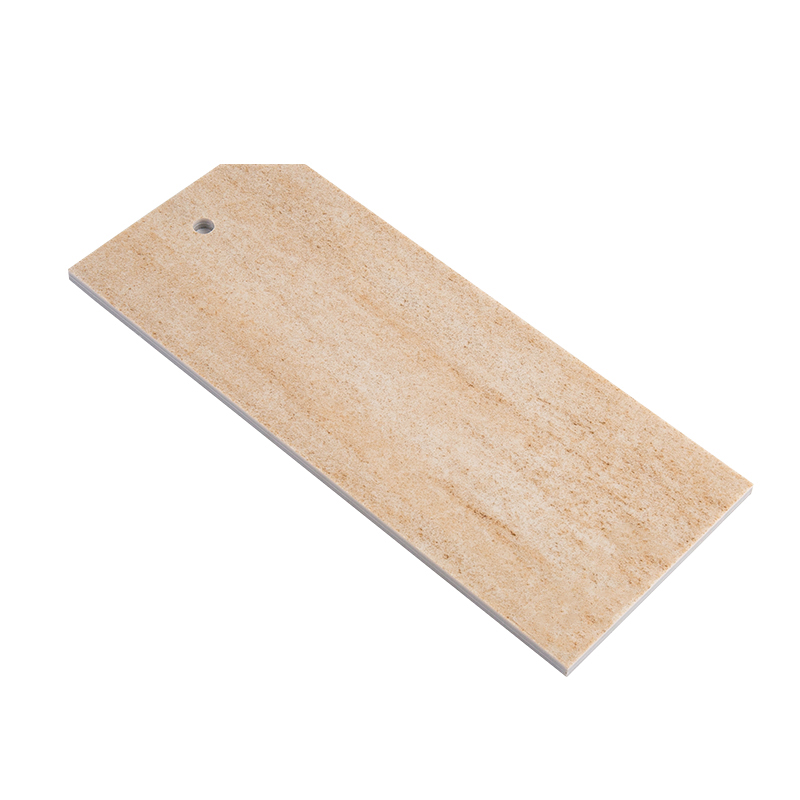

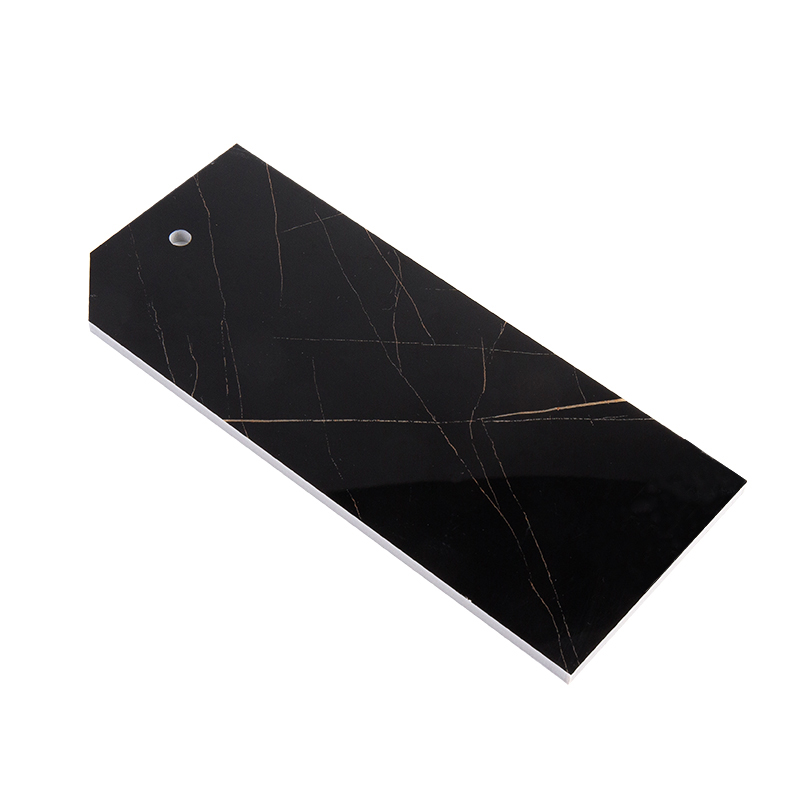

This marble-effect PVC wall panel combines a WPC substrate with a UV-cured high-gloss coating. The surface achieves 3H-4H pencil hardness for scratch resistance in commercial applications. Panel width is 122 cm with thickness options from 2.5 mm to 15 mm. Lengths available from 2.44 m to 4.0 m in seven increments. The marble pattern is printed using high-definition technology with consistent veining across panel joints.

1

UV Shield Coating Technology

UV-cured surface layer provides high-gloss finish with delta E less than 2 after 500 hours QUV testing, preventing yellowing from solar exposure. The coating chemistry achieves 85-95 GU at 60 degrees gloss meter reading.

2

Scratch-Resistant Surface

Pencil hardness rating of 3H to 4H resists abrasion from keys, zippers, and cleaning tools. The coating maintains optical clarity under daily commercial traffic conditions, tested per ASTM D3363 standard.

3

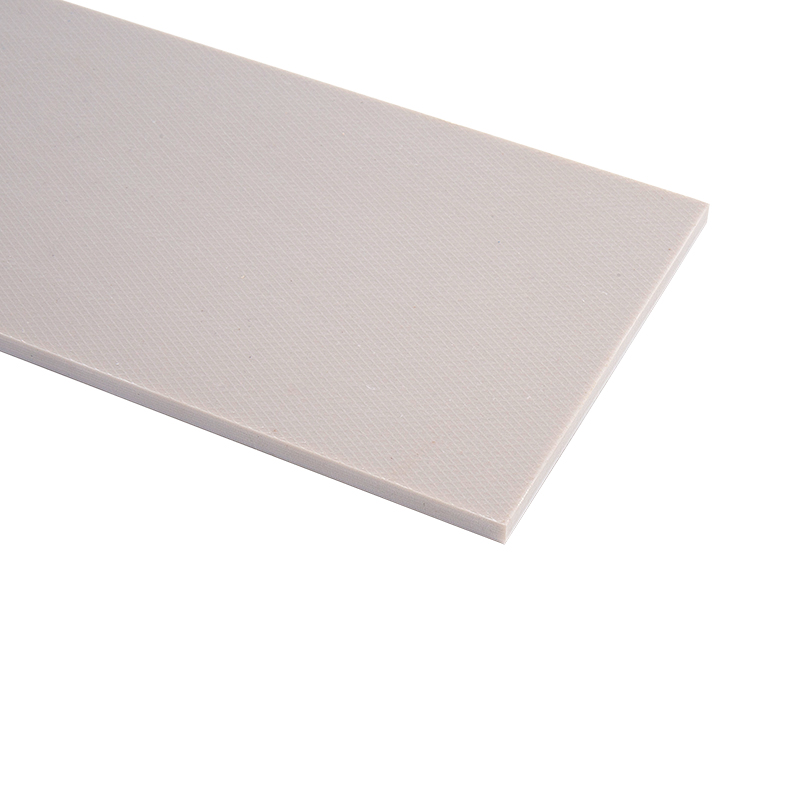

Waterproof WPC Core

Wood-plastic composite substrate with water absorption below 0.5 percent prevents swelling, delamination, and mold growth in high-humidity environments. Closed-cell structure maintains dimensional stability across temperature variations.

4

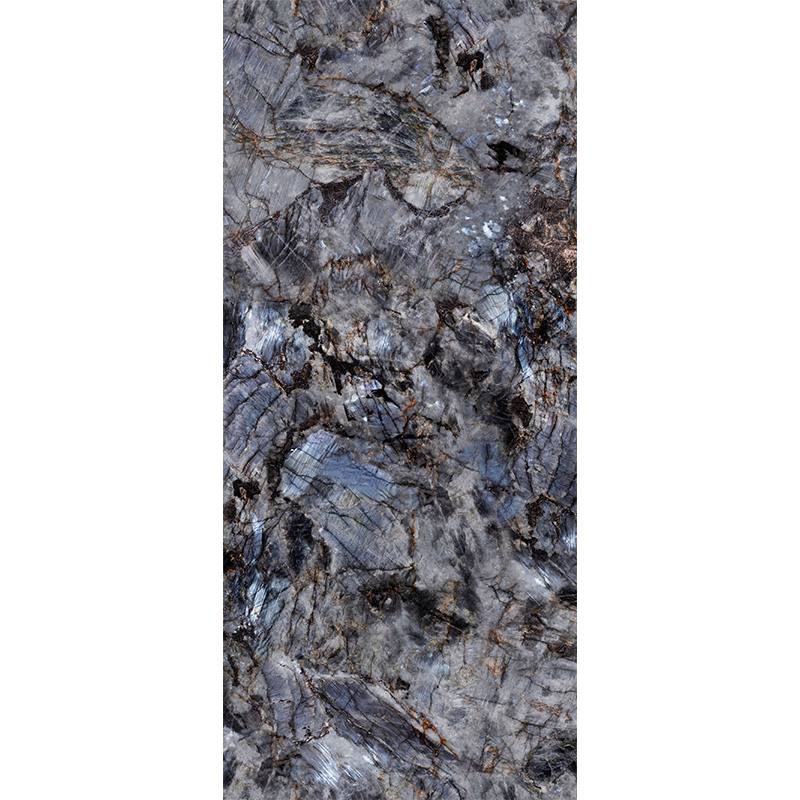

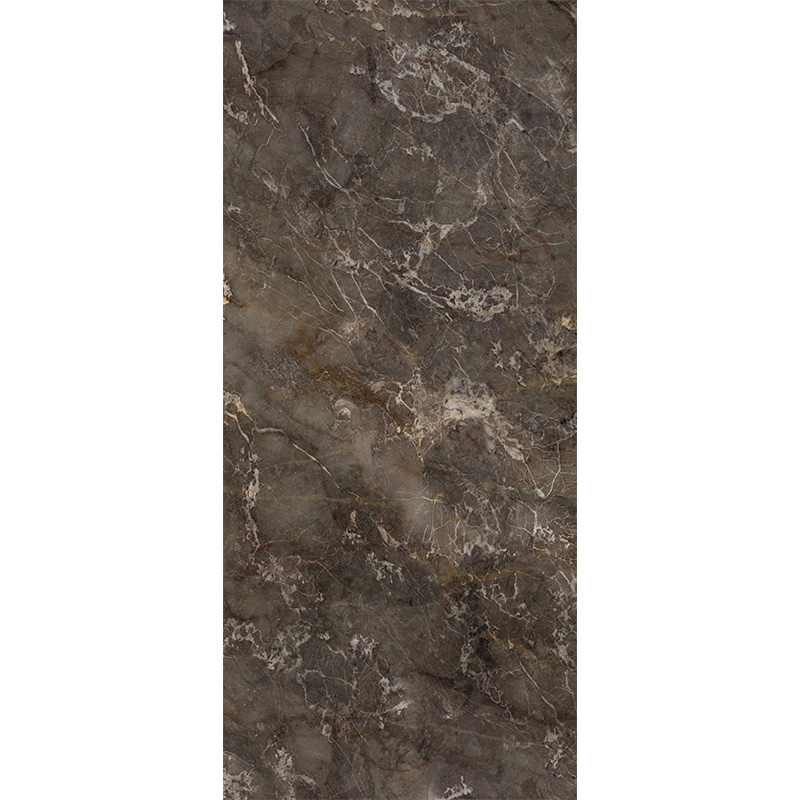

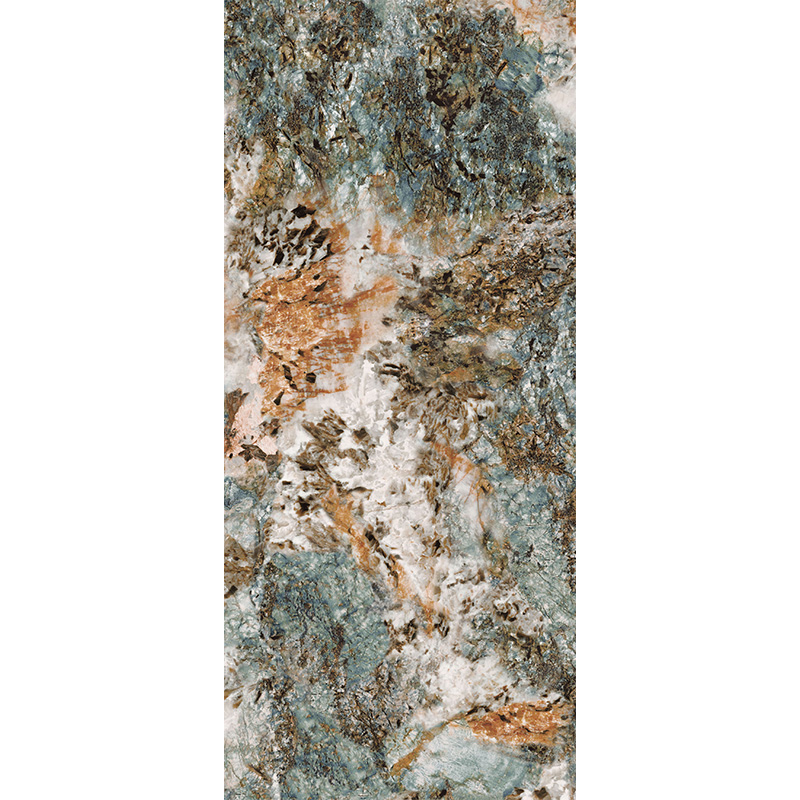

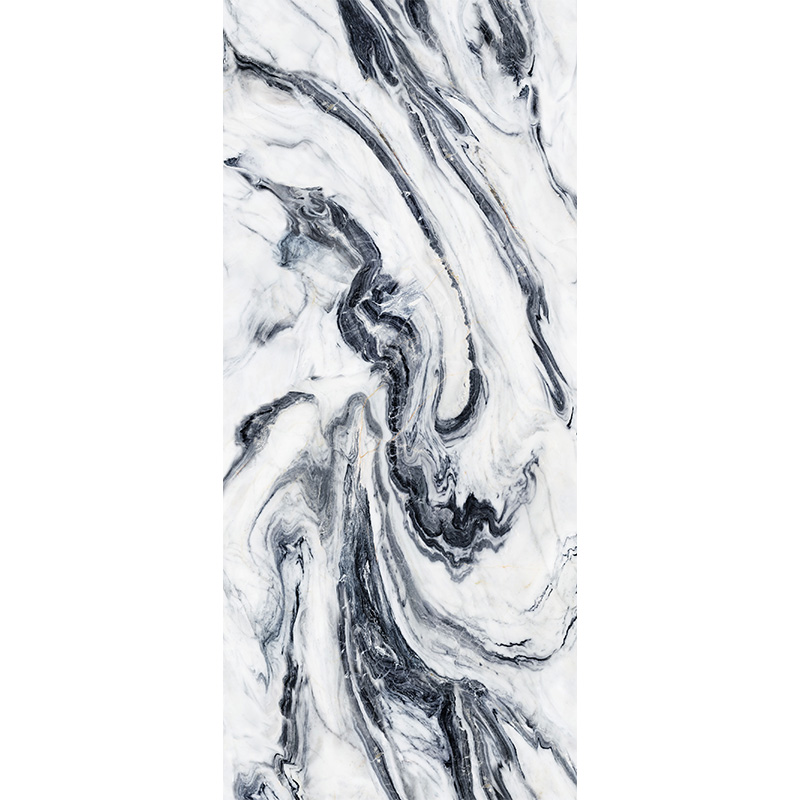

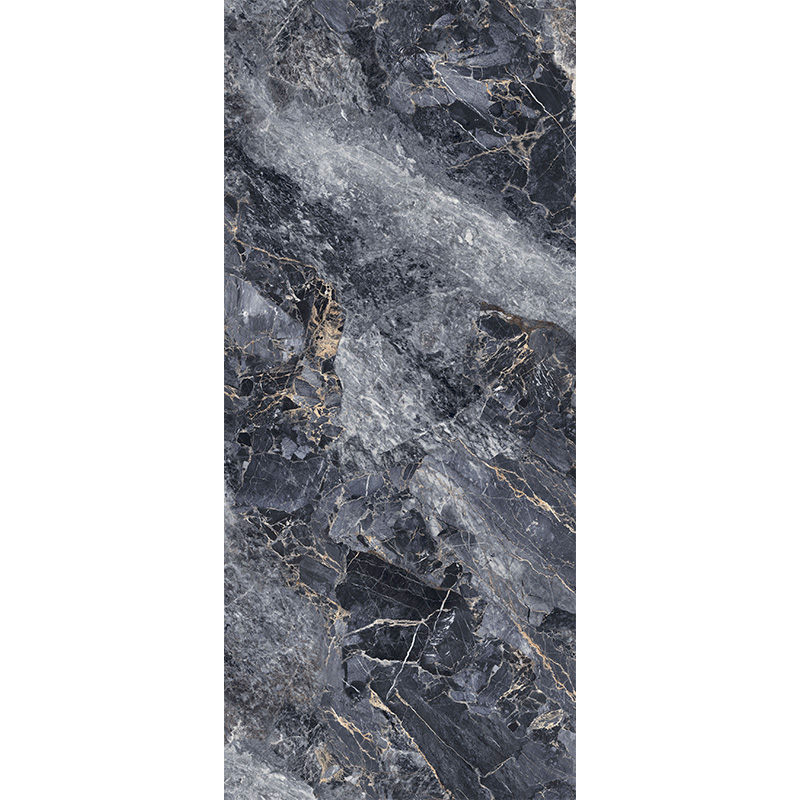

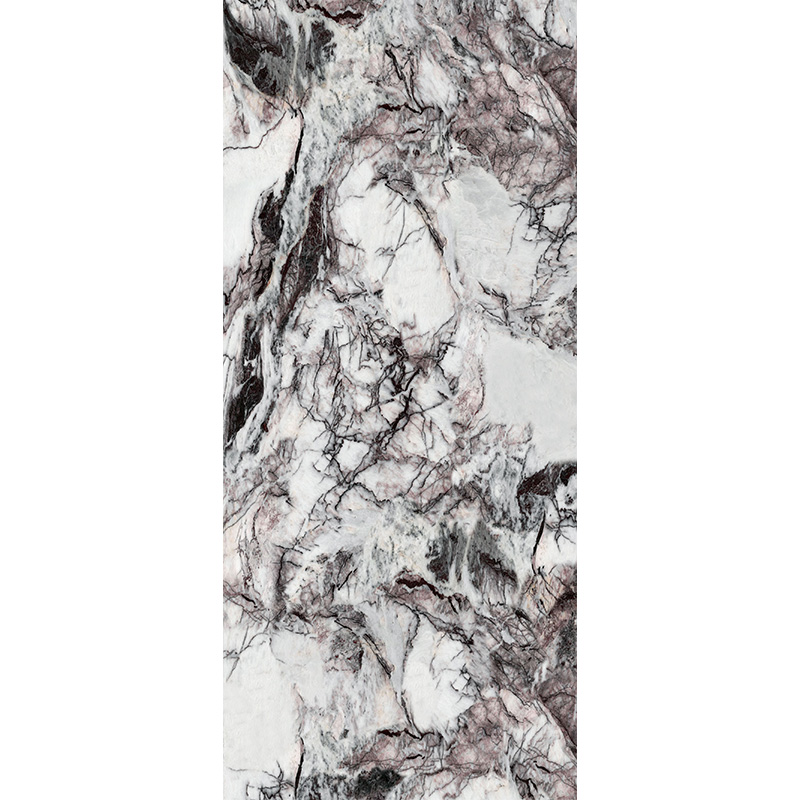

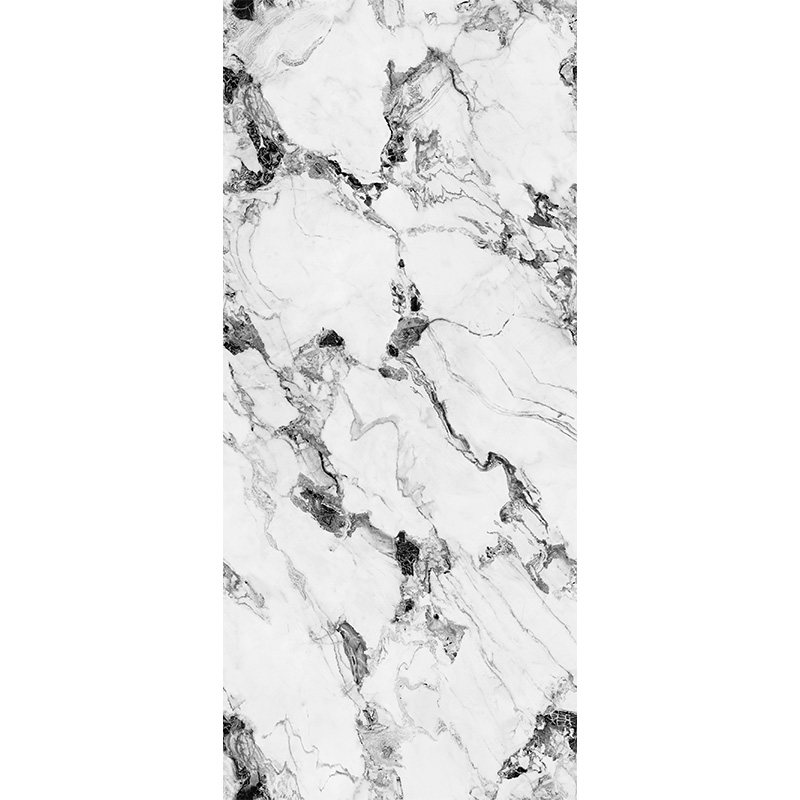

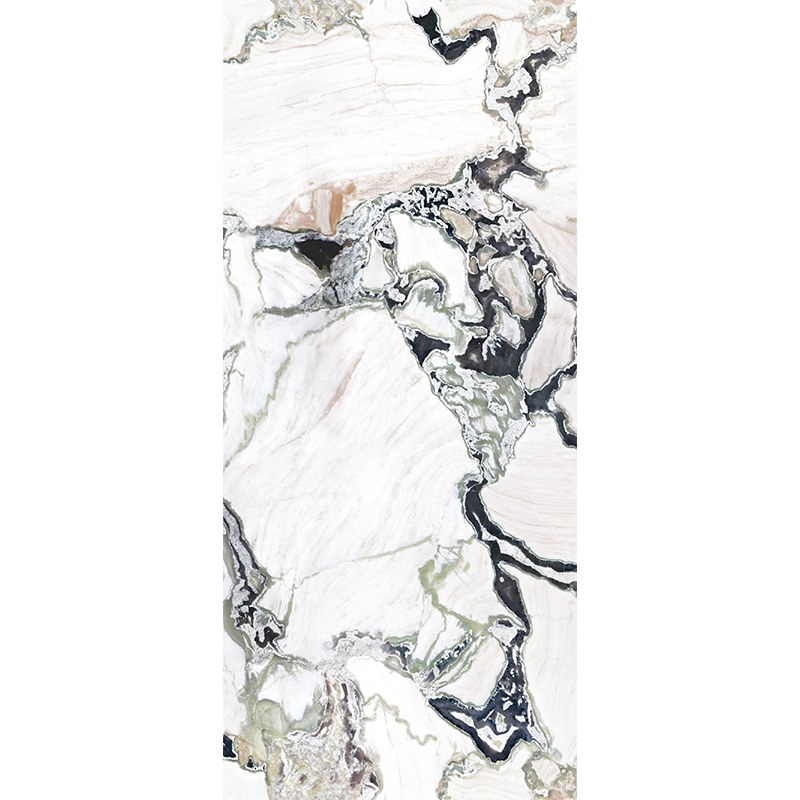

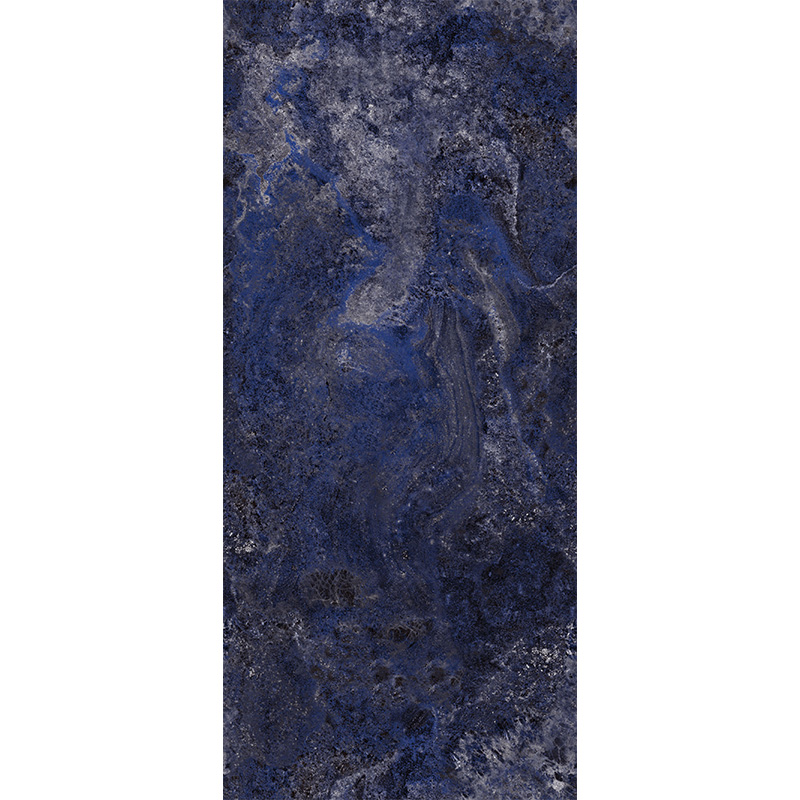

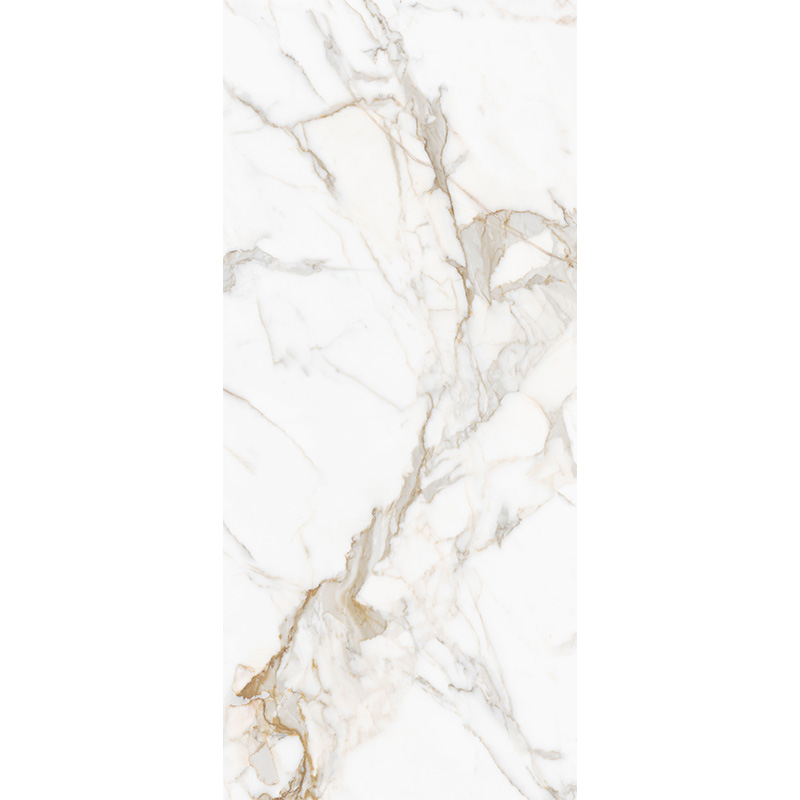

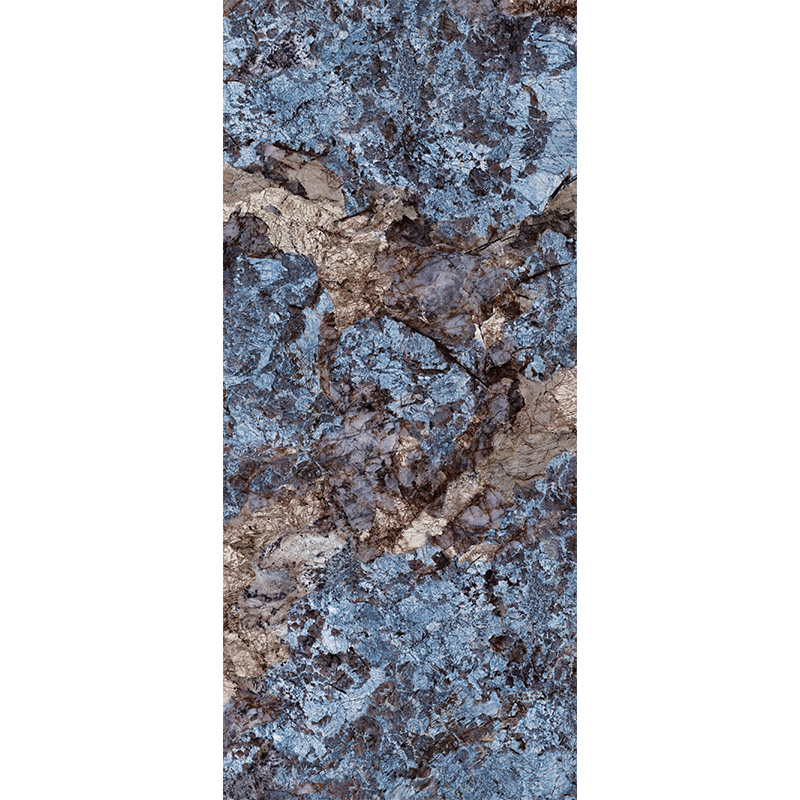

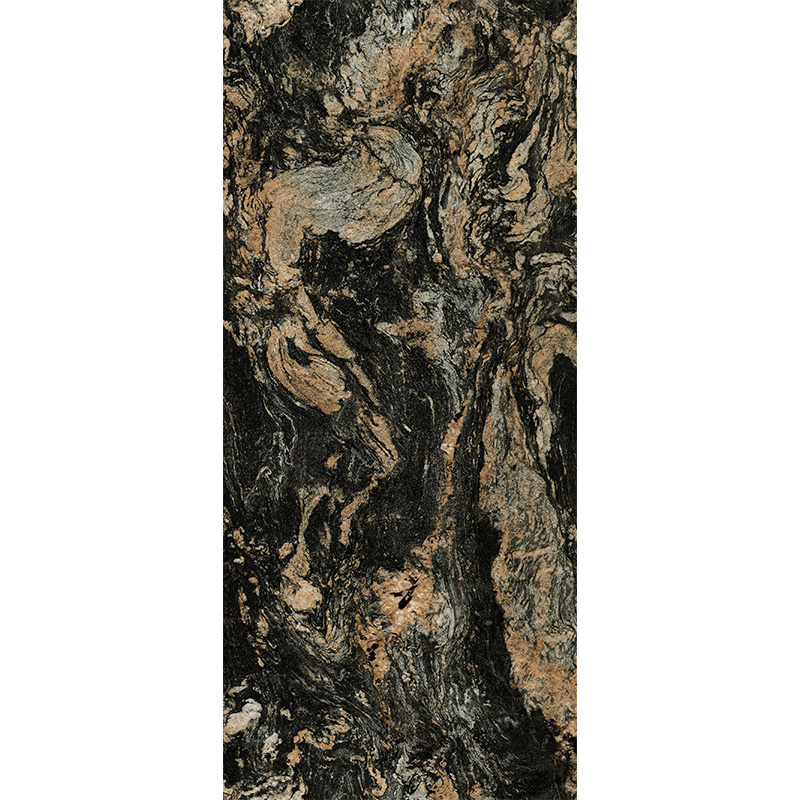

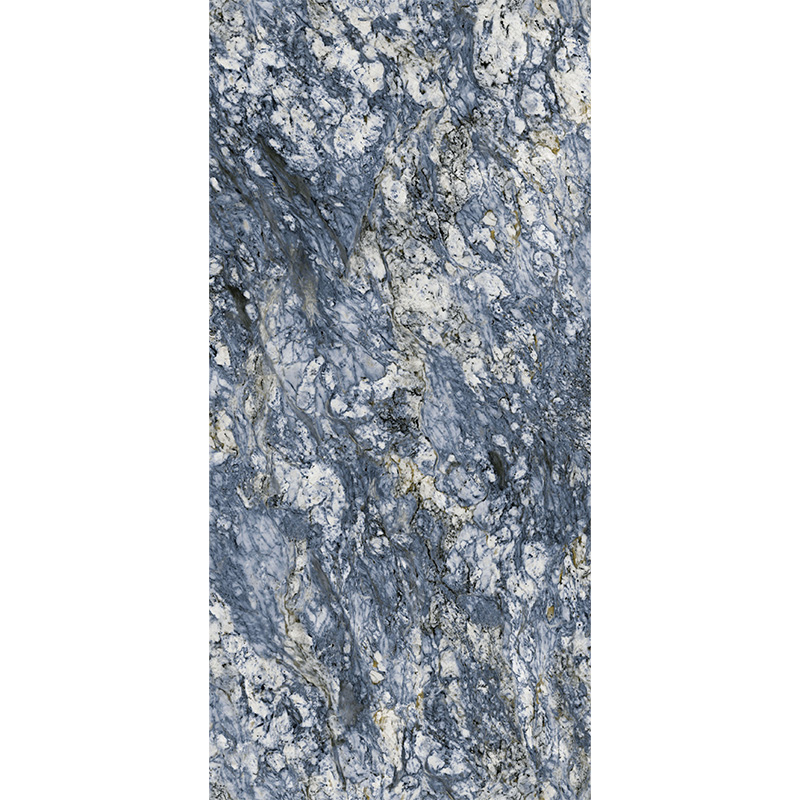

Marble Visual Effect

High-definition printed pattern replicates natural marble veining with consistent repeat across panel joints. Available in multiple colorways to match design specifications.

Thickness Versatility

Available from 2.5mm to 15mm to match structural requirements and budget specifications. Thinner profiles suit decorative wall cladding and furniture surfacing. Thicker profiles provide enhanced impact resistance for high-traffic commercial corridors and public spaces.

Length Options

Seven length options from 2.44m to 4.0m accommodate standard wall heights without horizontal joints: 2.44 / 2.6 / 2.8 / 3.0 / 3.2 / 3.6 / 4.0 meters. Custom lengths available for volume orders.

Fire Rating Class B1

Surface Hardness 3H-4H

Gloss Level 85-95 GU

Water Absorption <0.5%

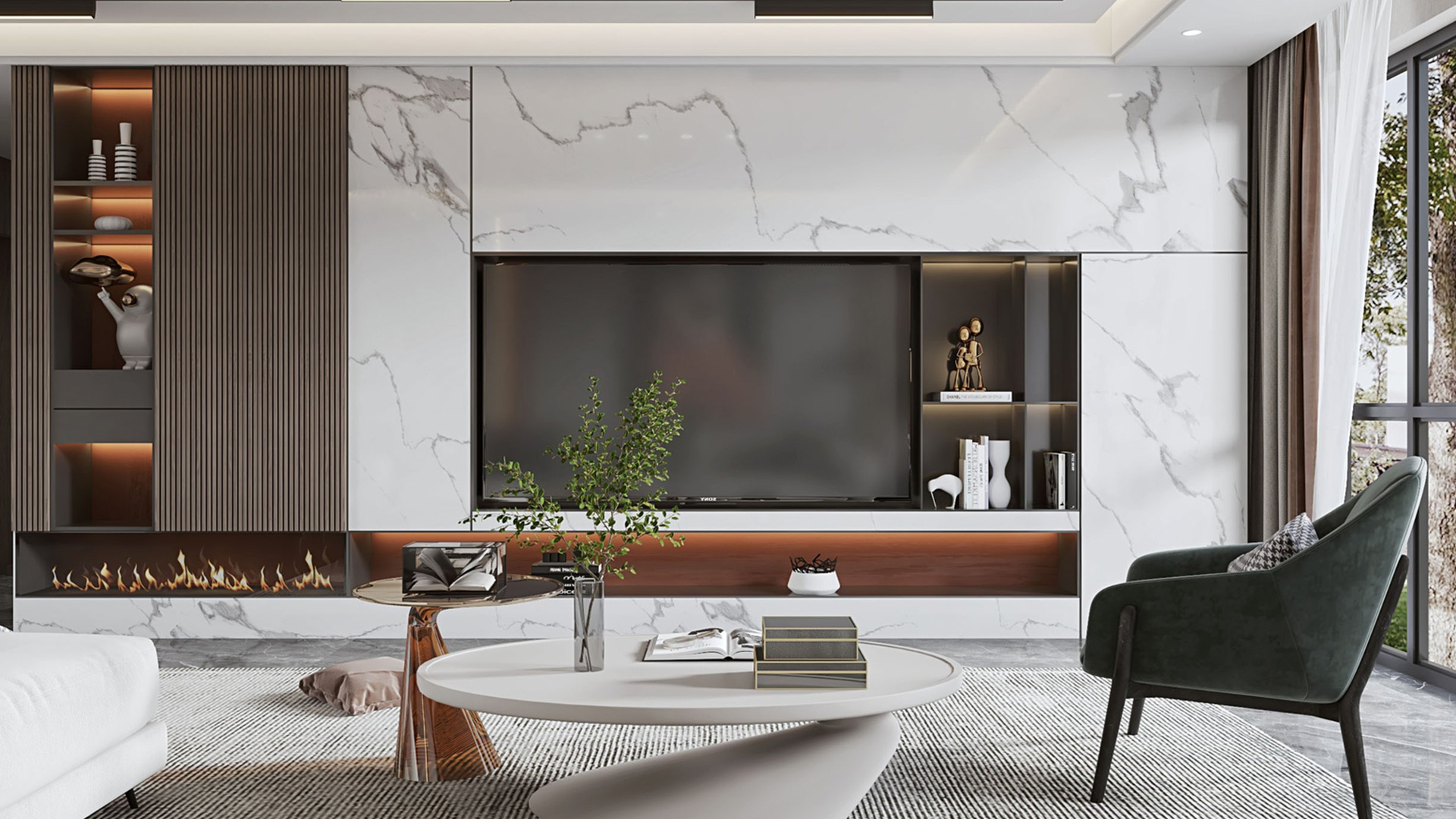

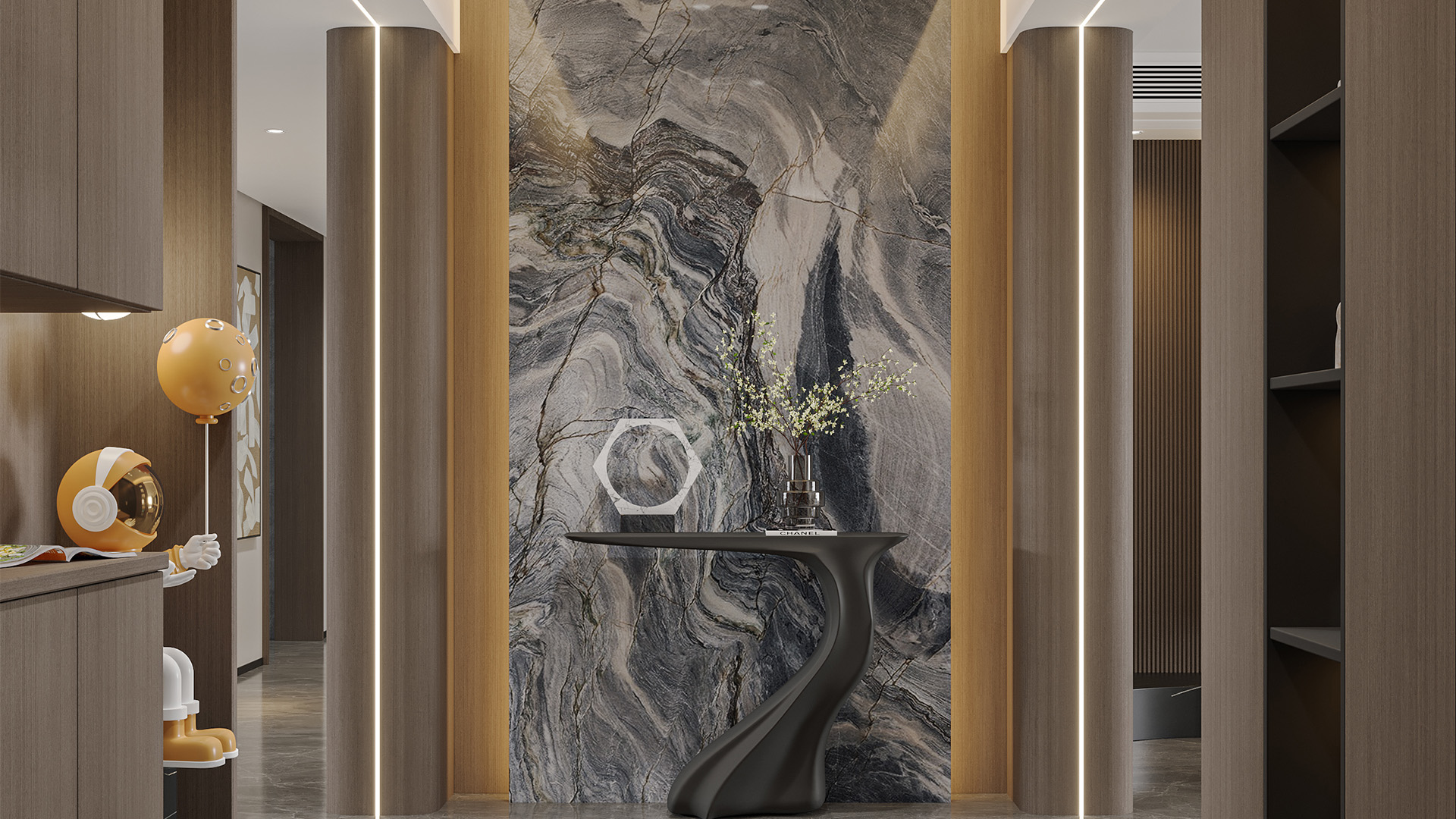

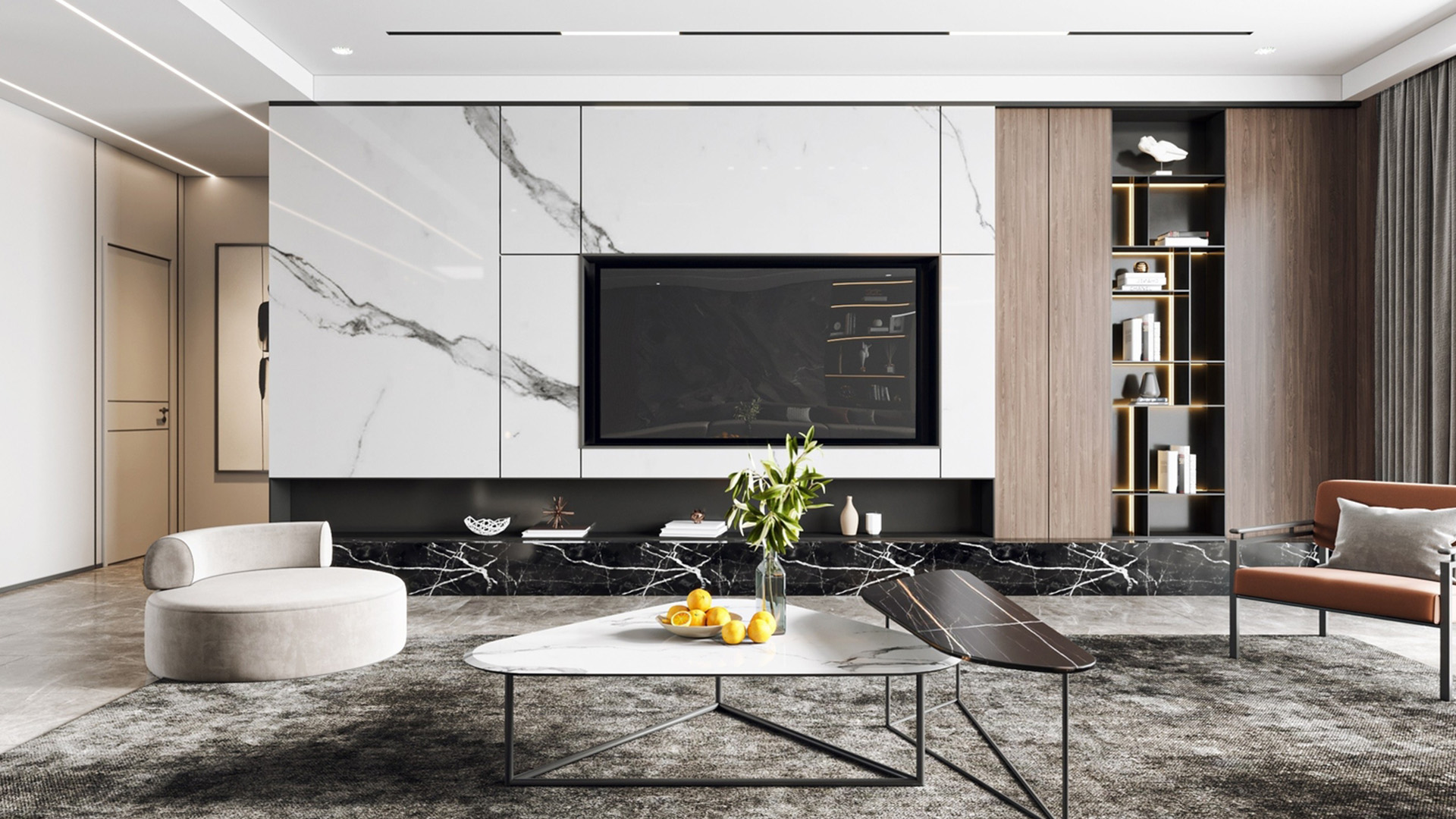

Application Environments

Hotel Lobbies

Retail Stores

Corporate Offices

Residential Interiors

Bathroom Walls

Kitchen Backsplashes

Showroom Displays

Elevator Cabins

Healthcare Facilities

Restaurant Interiors

Technical Q&A

How does the UV coating perform under prolonged sunlight exposure?

The UV-cured coating contains stabilizers that limit color change to delta E less than 2 after 500 hours of QUV accelerated weathering testing. For interiors with direct window sunlight, the surface maintains visual consistency for 5+ years without noticeable yellowing.

Can the high-gloss surface be repaired if scratched?

Minor surface scratches can be buffed using fine automotive polish with a soft cloth. Deep scratches penetrating the coating layer are not repairable on-site. Replace individual panels as needed using the tongue-and-groove system.

What cleaning products are safe for the high-gloss finish?

Use pH-neutral detergents diluted with water. Avoid ammonia-based cleaners, bleach, or any product containing abrasives. Microfiber cloths are recommended over paper towels which may leave micro-scratches on the gloss surface.

How to handle panel joints for seamless marble pattern alignment?

The tongue-and-groove edge profile aligns panels with 0.5 mm joint gap. For continuous pattern flow, match printed veining during installation by checking pattern registration marks. Use matching PVC filler for seam concealment.

Specifications represent standard manufacturing parameters. Actual product performance may vary based on installation conditions and substrate preparation. Third-party test reports available upon request.

Composition:	WPC
Thickness (mm):	2.5-15
Density (g/cm³) or weight:	/
Width (cm):	122
Length (m):	2.44/2.6/2.8/3/3.2/3.6/4
Seam:	/
Shape of the hole:	/
