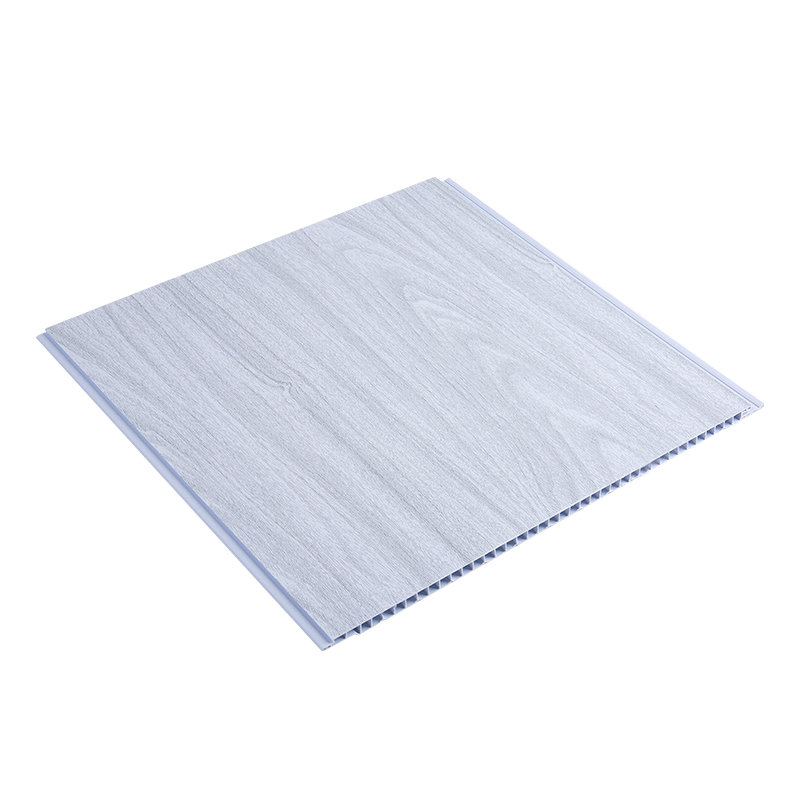

This interior wall cladding system is manufactured from rigid PVC substrate with a printable surface layer. The 8 mm thickness provides structural stability for vertical wall mounting. Each panel measures 30 cm in width and incorporates a square hole pattern spaced at 150 mm intervals for mechanical fastening. The printable surface accepts digital printing, screen printing, or vinyl film application, enabling custom graphics, patterns, or brand imagery. Suitable for commercial and residential interiors requiring custom decorative wall surfaces.

8 mm

Thickness

30 cm

Width

Square

Hole Shape

Custom

Print Surface

Core Functional Advantages

Printable surface layer: Accepts UV-cured inks, solvent-based inks, and vinyl adhesives for custom graphics and pattern application.
Square hole fastening: Pre-formed apertures enable screw or nail fixation without pre-drilling, reducing installation time by approximately 30 percent compared to solid panels.

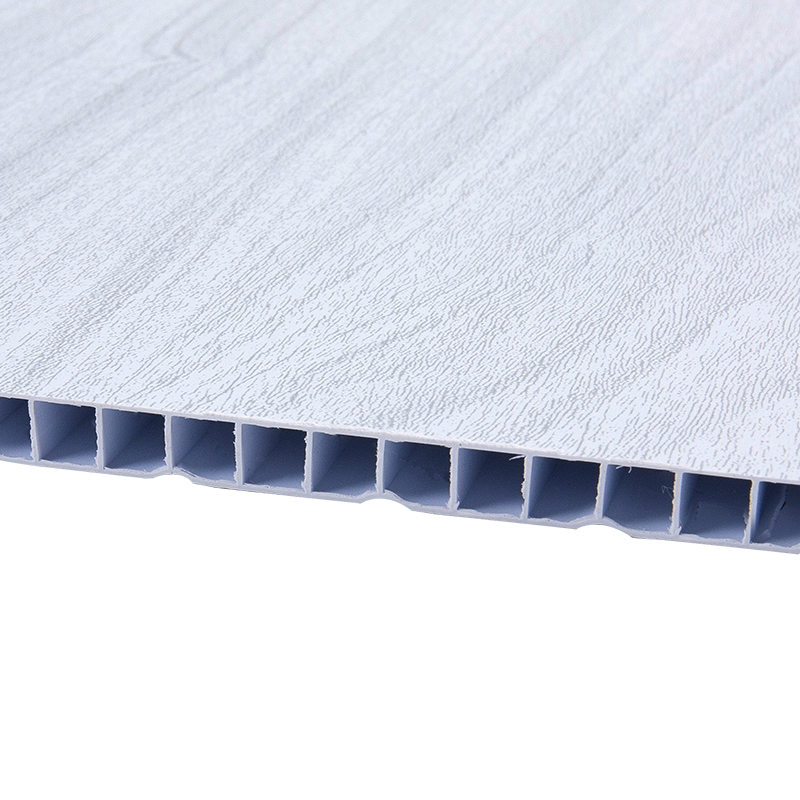

Waterproof substrate: Closed-cell PVC structure with water absorption below 0.1 percent prevents printed layer delamination in humid conditions.
Dimension consistency: 8 mm thickness and 30 cm width maintained within ±0.2 mm tolerance for uniform panel alignment.
Surface preparation: Factory-applied primer layer enhances ink adhesion for digital and screen printing processes.

Technical Specifications

Composition Rigid PVC with printable coating

Thickness 8 mm ±0.2 mm

Width 30 cm

Hole shape Square, 6 mm x 6 mm

Hole spacing 150 mm center to center

Surface energy Greater than 40 dynes per cm

Density 0.56 g per cubic centimeter

Product Characteristics

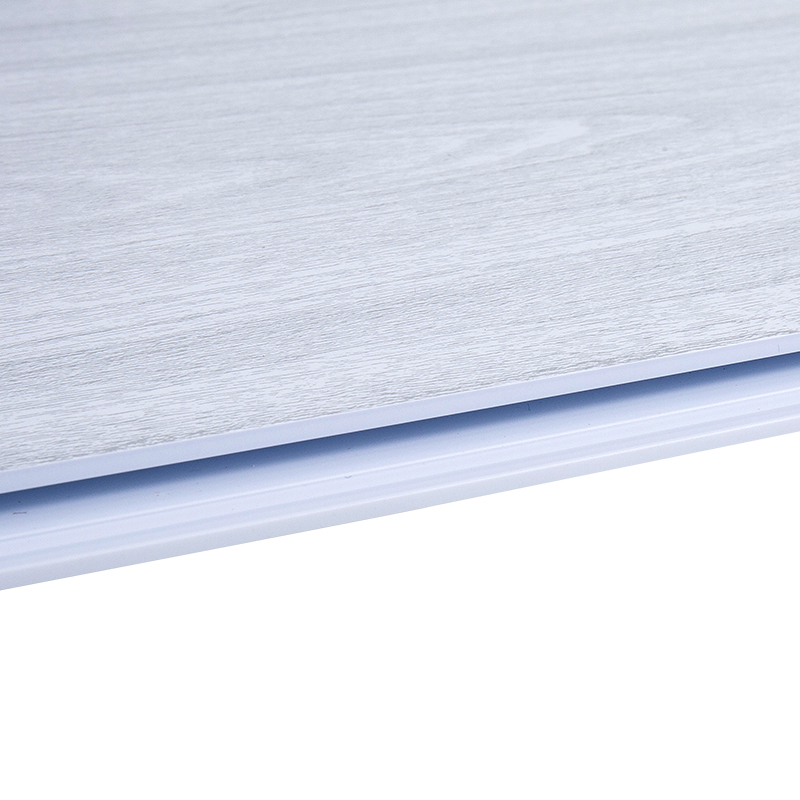

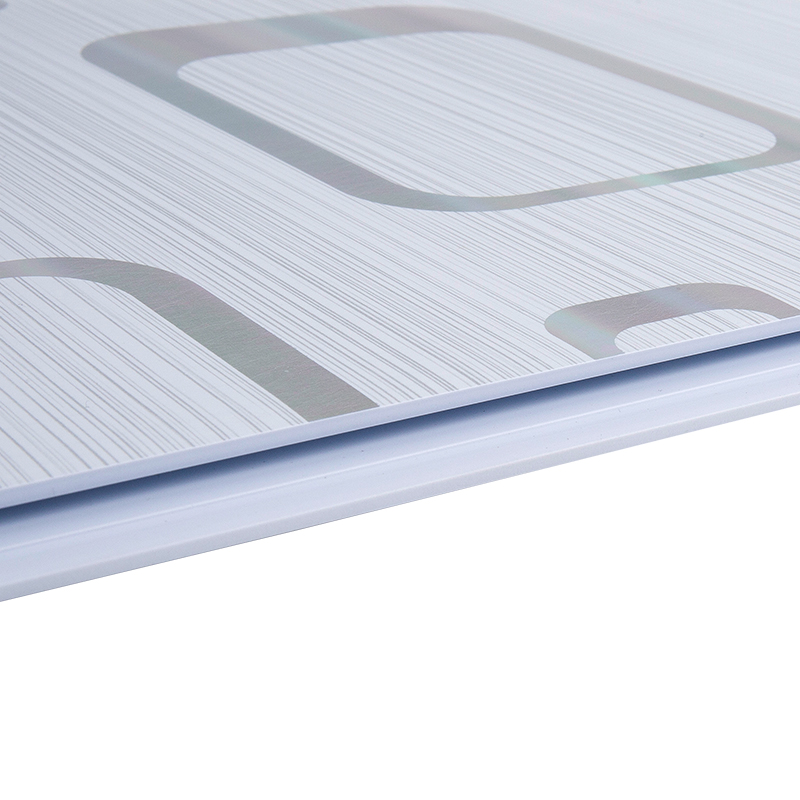

Edge profile: Tongue-and-groove joint on longitudinal edges for seamless panel-to-panel alignment and moisture barrier continuity.

Installation methods: Direct wall mounting using screws through square holes, construction adhesive, or combination of both.

Weight: Approximately 1.2 kg per square meter, suitable for single-person handling during installation.

Chemical resistance: Substrate resists diluted acids, alkalis, and common cleaning agents used in commercial environments.

Thermal expansion coefficient: 0.065 mm per meter per degree Celsius for predictable gap planning.

Recyclability: Post-installation panels can be ground and reprocessed into PVC compounds for secondary applications.

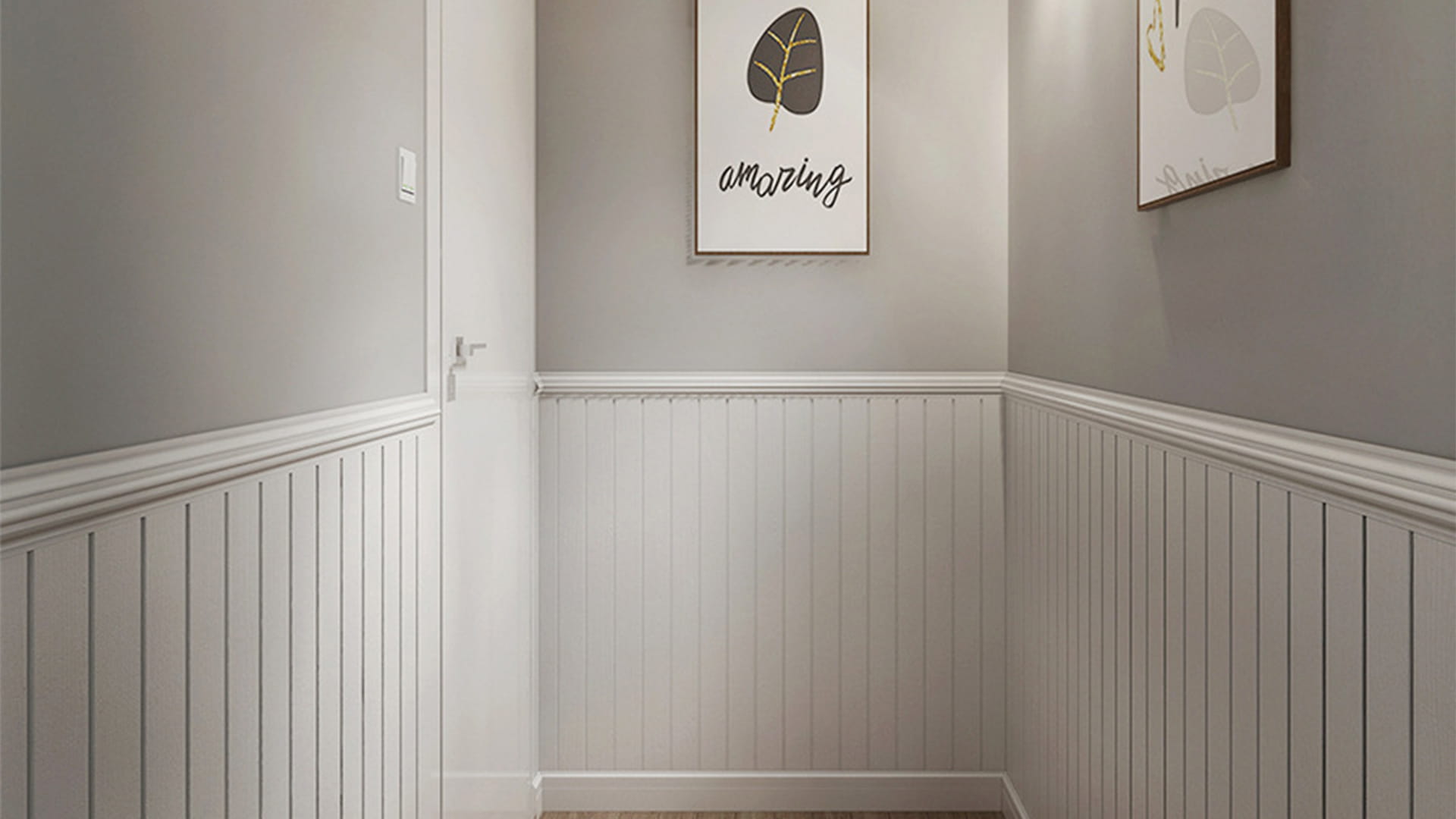

Application Scenarios

Retail store interiors: Custom-printed panels with brand graphics, product imagery, or wayfinding signage integrated into wall surfaces.
Trade show booths and exhibition spaces: Lightweight printable panels for temporary or semi-permanent display structures.
Restaurant and hospitality venues: Printed decorative patterns or themed murals on moisture-resistant wall cladding.
Corporate office environments: Brand color integration and logo placement on interior wall panels.
Healthcare facility corridors: Printable surface allows application of wayfinding graphics and department identifiers.
Educational institutions: Custom-printed educational graphics or school colors on durable, cleanable wall surfaces.

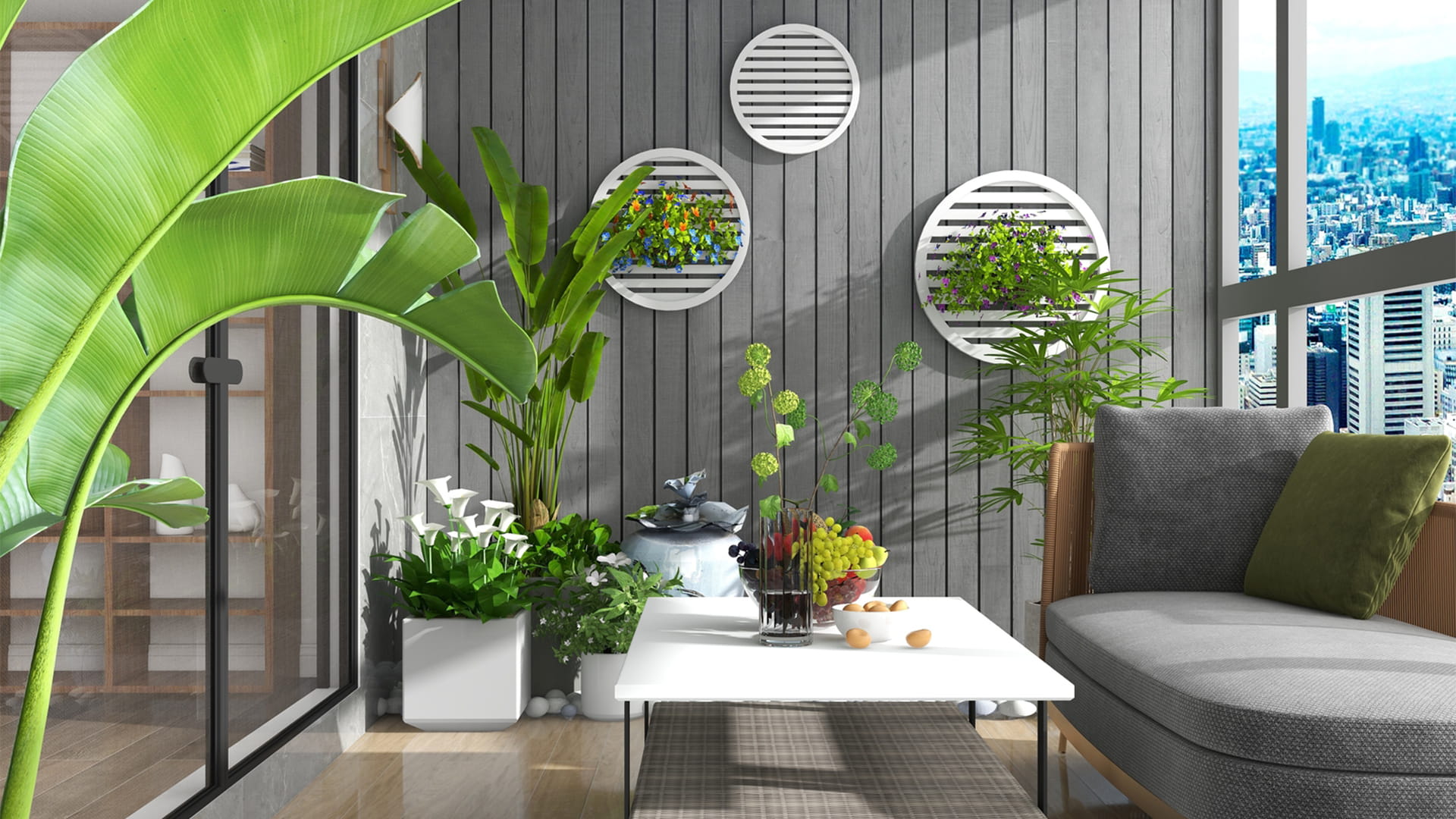

Residential accent walls: Custom photographic prints or pattern designs on waterproof wall panels for bathrooms or kitchens.

Printing & Surface Compatibility

UV digital printing Recommended - direct printing with UV-curable inks

Solvent inkjet Compatible with eco-solvent and mild-solvent inks

Screen printing Compatible with PVC-compatible screen inks

Vinyl film application Compatible with cast and calendared vinyl films

Ink adhesion test Cross-hatch adhesion rating 4B or higher

Installation & Processing Guidelines

01

Square hole fastening: Use pan-head screws (size No.6 or No.8) with length 20-25 mm. Align fastener with square hole center. Leave 1 mm gap between head and panel surface.

02

Printing preparation: Wipe surface with isopropyl alcohol to remove dust and oils before printing. Avoid acetone or aggressive solvents.

03

Cutting procedure: Use fine-tooth saw (10-12 TPI) or CNC router. Feed rate: 3-5 meters per minute for clean edge finish.

04

Expansion management: Maintain 3-5 mm gap at wall corners and ceiling junctions. Cover gaps with matching trim profiles.

Common Questions & Technical Solutions

What printing methods work best on this panel?	UV digital printing provides the strongest adhesion and abrasion resistance. Eco-solvent printing is also compatible. Test prints recommended for specific ink formulations.
Can printed panels be cleaned regularly?	Yes. Use mild detergent and soft cloth. Avoid abrasive cleaners, high-pressure washers, or scrubbing brushes which may damage printed surface.
What is the maximum print resolution supported?	Surface accepts print resolutions up to 1200 DPI. Fine details and small text (minimum 4 point) remain legible with UV printing.
Are protective coatings needed after printing?	UV-cured prints require no additional coating. For solvent or screen printing, apply clear PVC overprint varnish for scratch protection in high-traffic areas.
How to handle panel joints with printed graphics?	Butt joints with tongue-and-groove alignment produce 0.5 mm visible gap. For seamless graphics, print across multiple panels after temporary assembly or use matching seam fillers.
What is the temperature range for printed panels?	Operational range: 0 to 50 degrees Celsius. Printed graphics remain stable within this range without cracking or yellowing.

Specifications based on standard manufacturing parameters. Print compatibility should be verified with specific ink systems prior to production runs. Installation must comply with local building codes.

Composition:	PVC
Thickness (mm):	8
Width (cm):	30
Shape of the hole:	Square
