Hollow Core Series

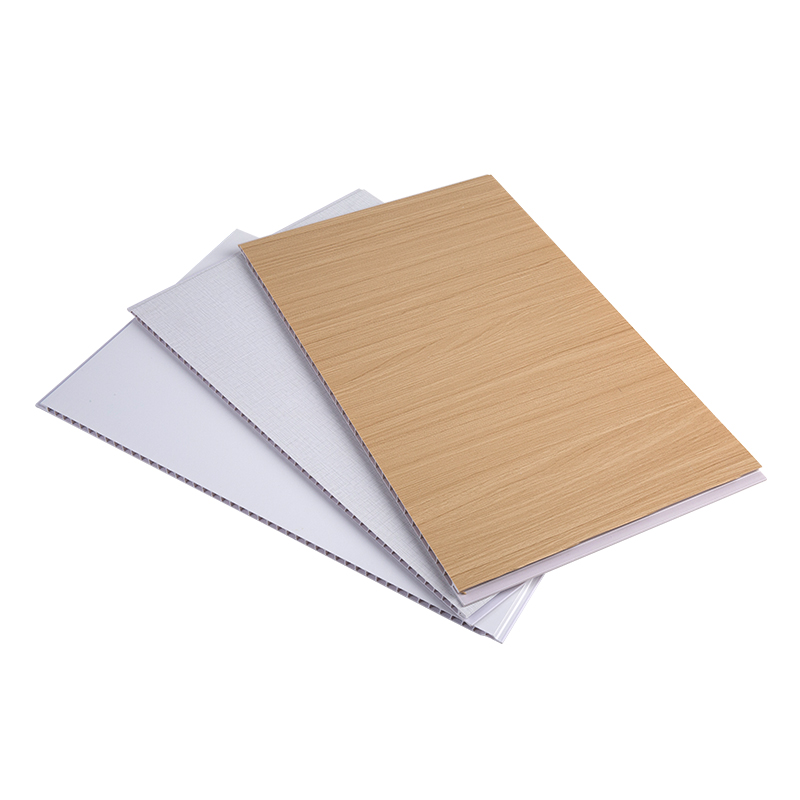

Hollow Core Lightweight Waterproof PVC Wall Panel for Interior Decoration

9 mm

Thickness

40 cm

Width

Square

Hole Shape

PVC

Composition

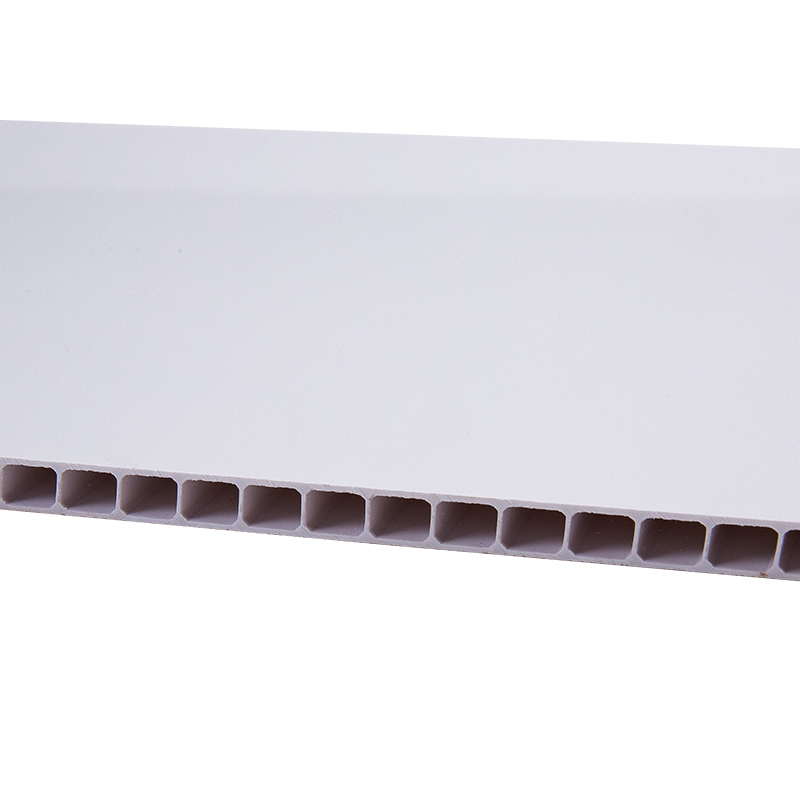

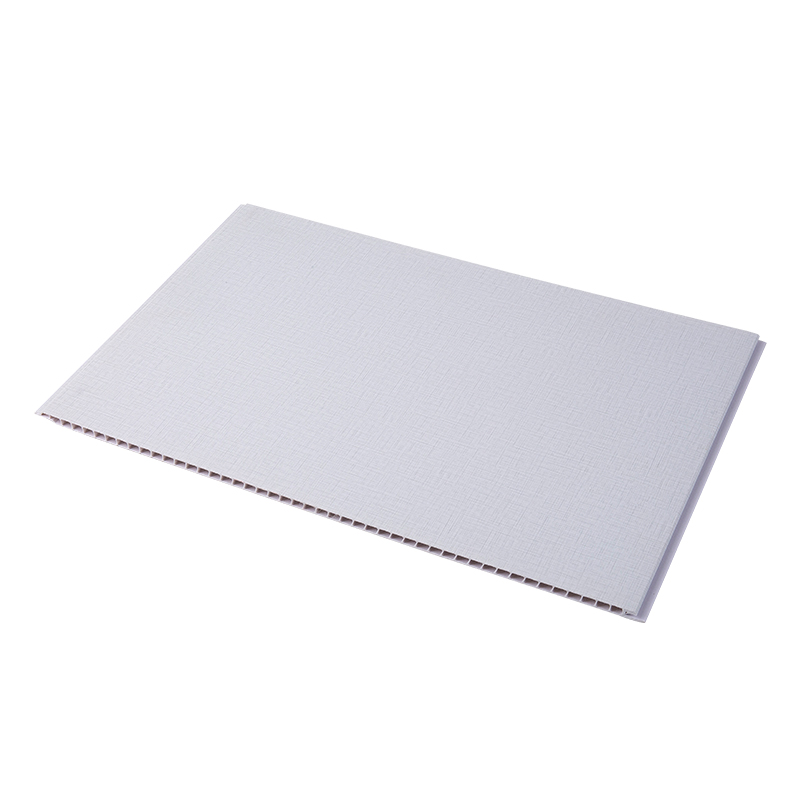

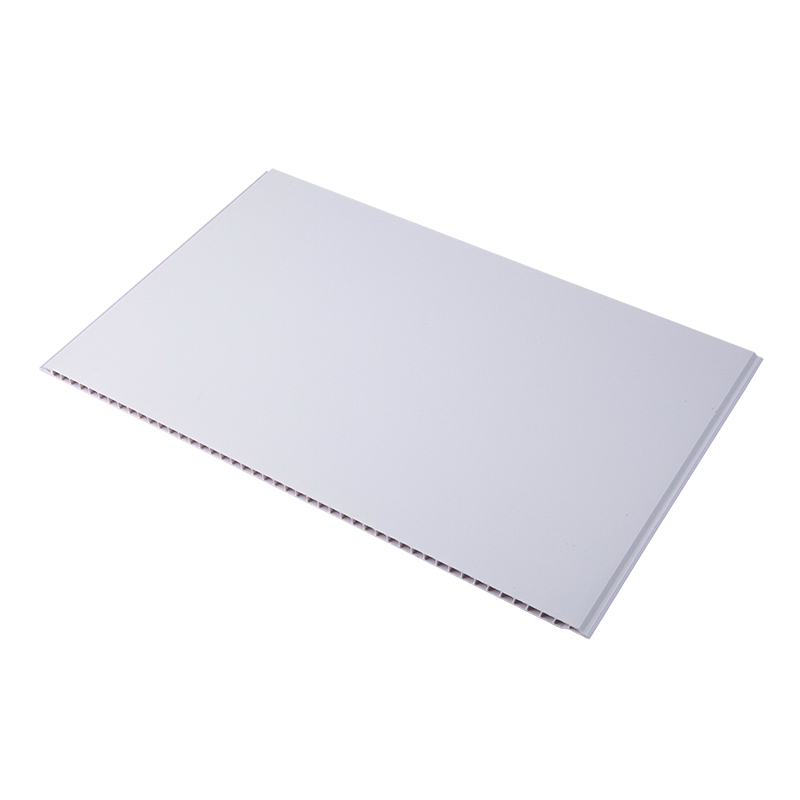

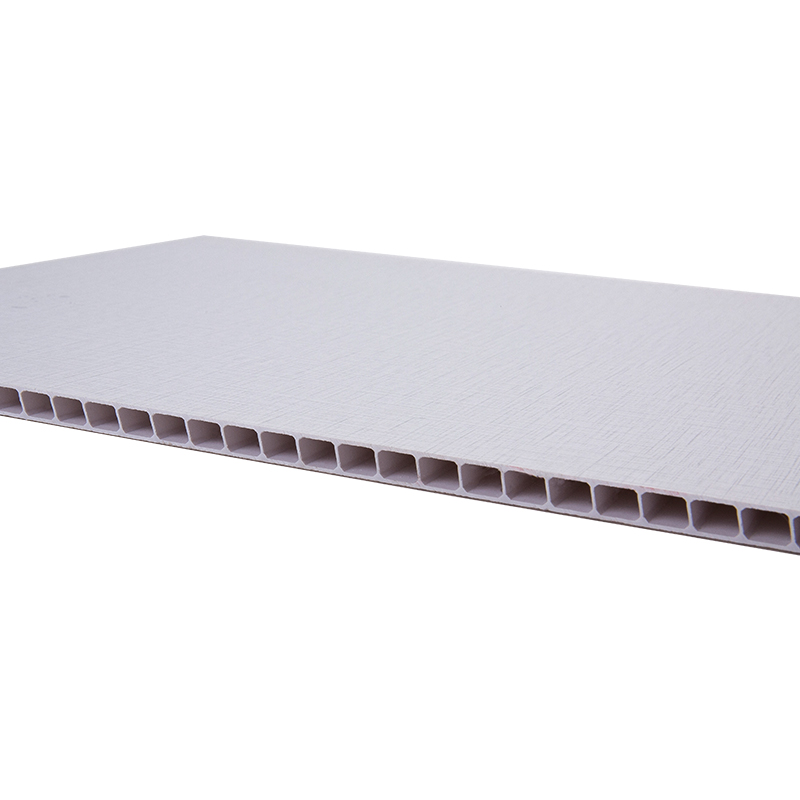

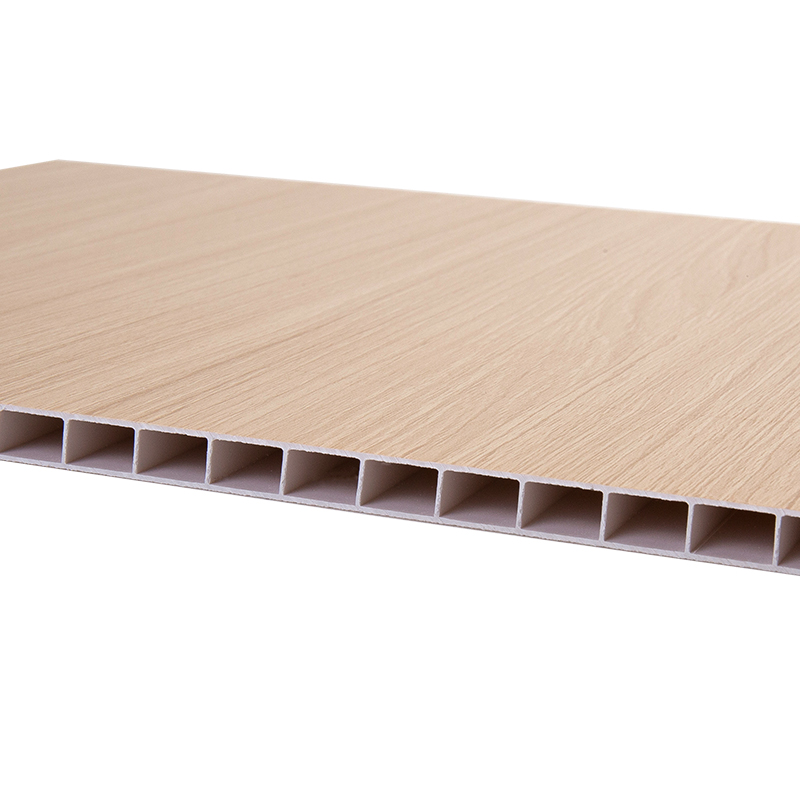

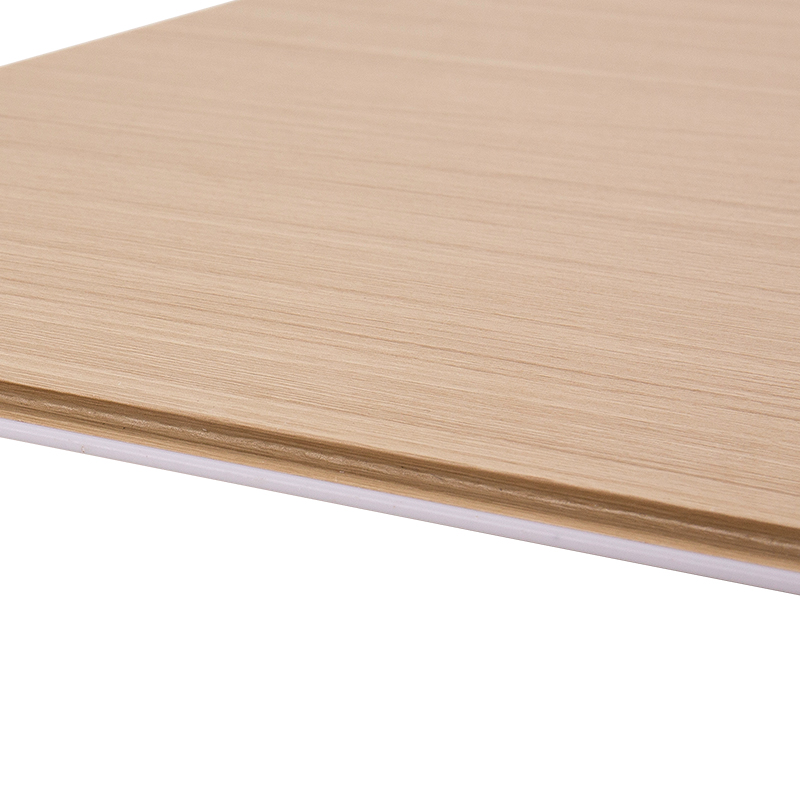

This hollow core PVC wall panel is manufactured from rigid PVC compound with a square hole pattern throughout the profile. The 9 mm thickness provides structural integrity while maintaining a lightweight design. Each panel measures 40 cm in width with square apertures spaced at regular intervals. The hollow core construction reduces material weight without compromising impact resistance. Suitable for interior decoration projects where moisture resistance and ease of installation are specified.

Key Advantages

Hollow core structure reduces weight by approximately 35 percent compared to solid PVC panels of equivalent thickness.
Square hole pattern enables screw or nail fixation without pre-drilling, reducing installation time.
Closed-cell PVC formulation with water absorption below 0.1 percent prevents moisture-related degradation.
40 cm width provides balanced coverage for interior wall applications while maintaining manageable handling weight.
Resistant to mold, mildew, and fungal growth in high-humidity interior environments.

Product Characteristics

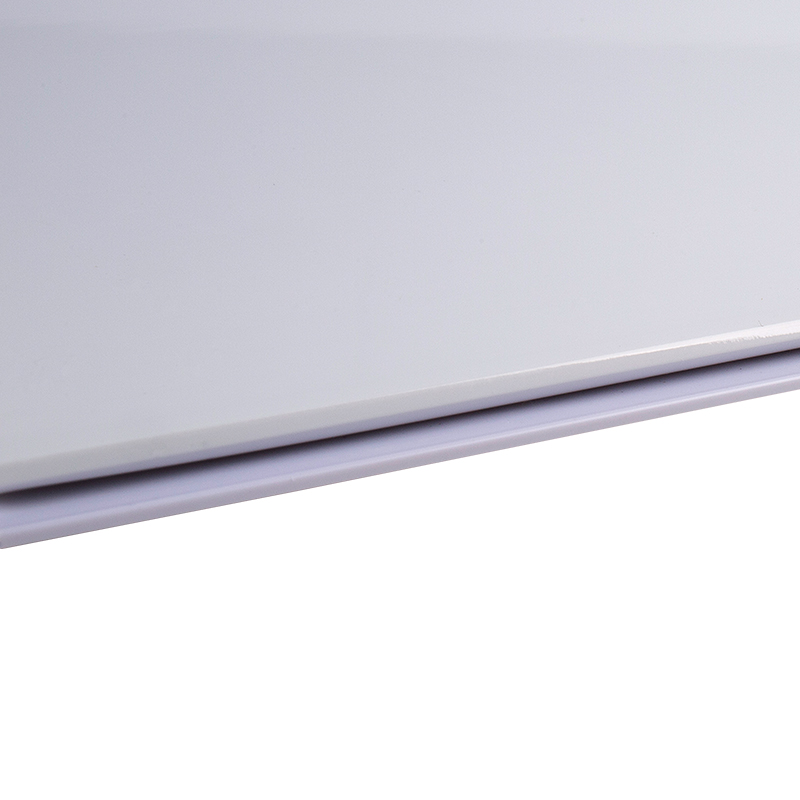

Edge profile: Tongue-and-groove joint on longitudinal edges for seamless surface assembly.
Weight per square meter: Approximately 0.9 kg, suitable for single-person handling during installation.
Square hole spacing: 150 mm center to center, aligning with standard wall stud spacing.

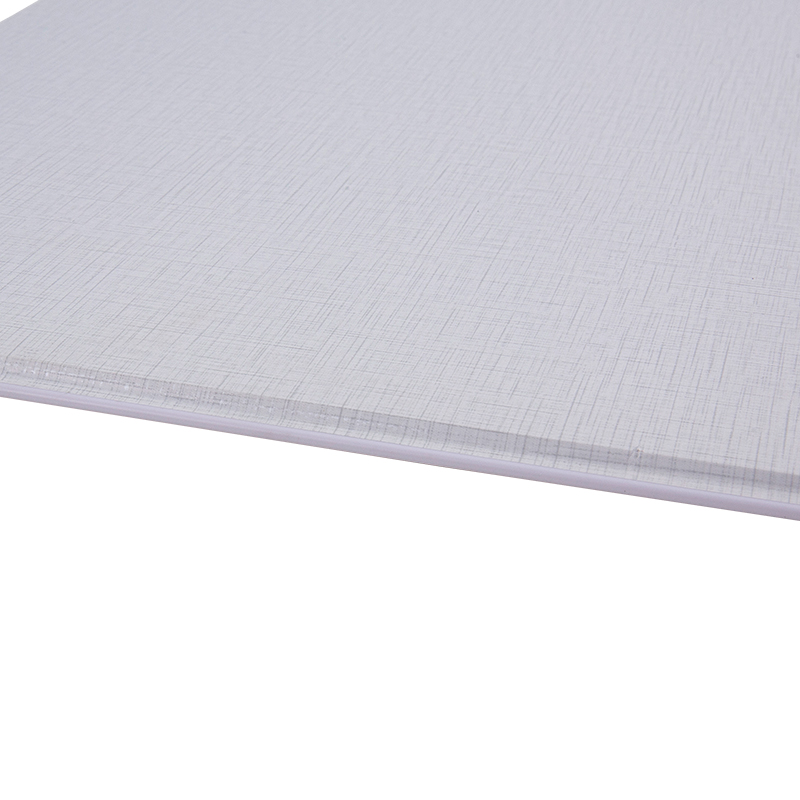

Surface finish: Smooth matte texture ready for painting or decorative film application.
Dimensional stability: Linear expansion coefficient of 0.065 mm per meter per degree Celsius.

Technical Specifications

Composition Rigid PVC with calcium-zinc stabilizers

Thickness 9 mm ±0.2 mm

Width 40 cm

Hole shape Square, 6 mm x 6 mm

Hole spacing 150 mm center to center

Density 0.52 g per cubic centimeter

Water absorption Less than 0.1 percent (24h)

Flexural strength 28 MPa at 23 degrees Celsius

Fire classification Class B1 (self-extinguishing)

Application Scenarios

R

Residential Interiors

Living rooms, bedrooms, and hallway wall cladding requiring lightweight decorative panels.

B

Bathroom Walls

Waterproof properties make panels suitable for shower-adjacent and high-humidity zones.

K

Kitchen Backsplashes

Resistance to grease, steam, and temperature fluctuations from cooking activities.

C

Commercial Spaces

Retail stores, offices, and hospitality venues requiring easy-to-clean wall surfaces.

L

Laundry Rooms

Protection against splashes, humidity cycles, and detergent exposure.

B

Basement Walls

Mitigates condensation and moisture issues typical in below-grade spaces.

Frequently Asked Questions

What fasteners work with the square hole pattern?

Use number 6 or number 8 self-tapping screws with length 20 to 30 mm, or galvanized spiral nails. Fastener head diameter should not exceed 7 mm to fit square hole opening. Maintain 1 mm gap between fastener head and panel surface for thermal expansion.

How to clean the PVC panel surface?

Use non-abrasive sponge with mild soap and water. Avoid solvent-based cleaners, bleach, or abrasive powders which may degrade the surface layer. For stubborn stains, isopropyl alcohol can be used sparingly.

What is the recommended installation temperature range?

Install panels when ambient temperature is between 10 and 35 degrees Celsius. Avoid installation below 5 degrees Celsius as PVC becomes less flexible and may crack during cutting or fastening.

Are expansion gaps required for hollow core panels?

Yes, leave 3 to 5 mm expansion gap at all wall corners, ceiling junctions, and fixed obstacles. Cover gaps with matching PVC trim profiles. This accommodates linear thermal expansion of approximately 0.065 mm per meter per degree Celsius.

⚙

Installation Guidelines

Square hole fastening: Align fasteners with square hole centers. Do not overdrive. Cutting: Use fine-tooth saw blade (10-12 TPI) or PVC scoring knife. Deburr cut edges. Acclimation: Store panels horizontally for 24 hours at 18-28°C before installation. Substrate: Must be flat within 2 mm per meter, dry, and clean.

Composition:	PVC
Thickness (mm):	9
Width (cm):	40
Shape of the hole:	Square

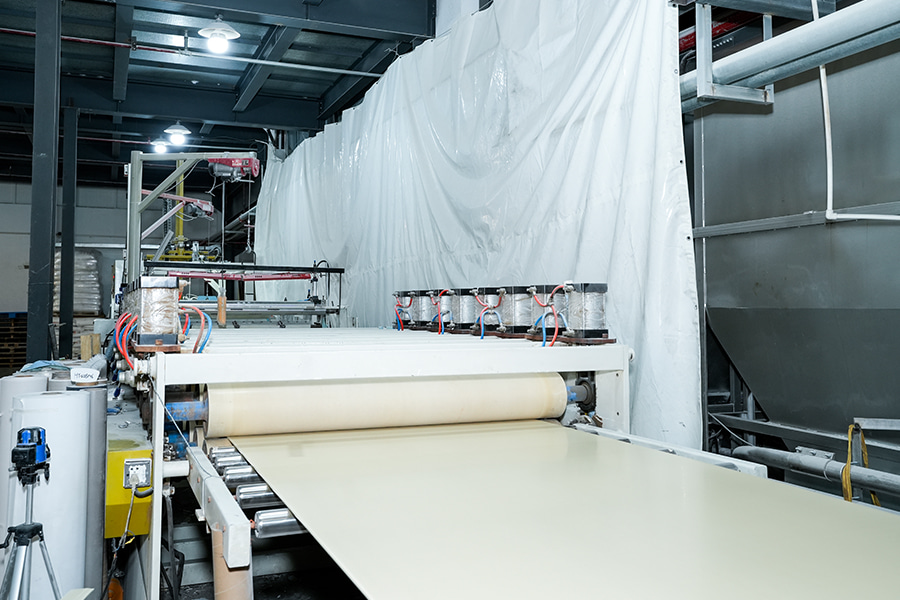

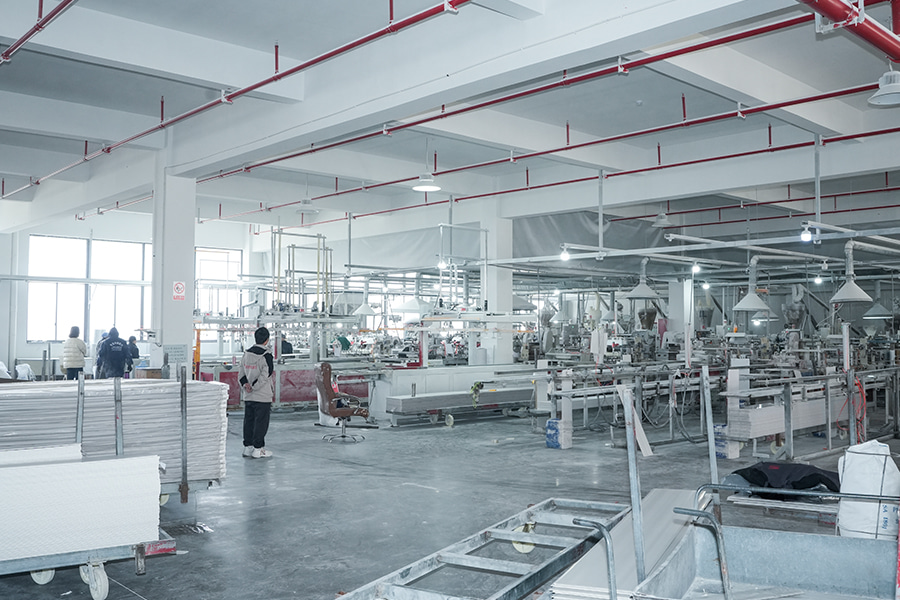

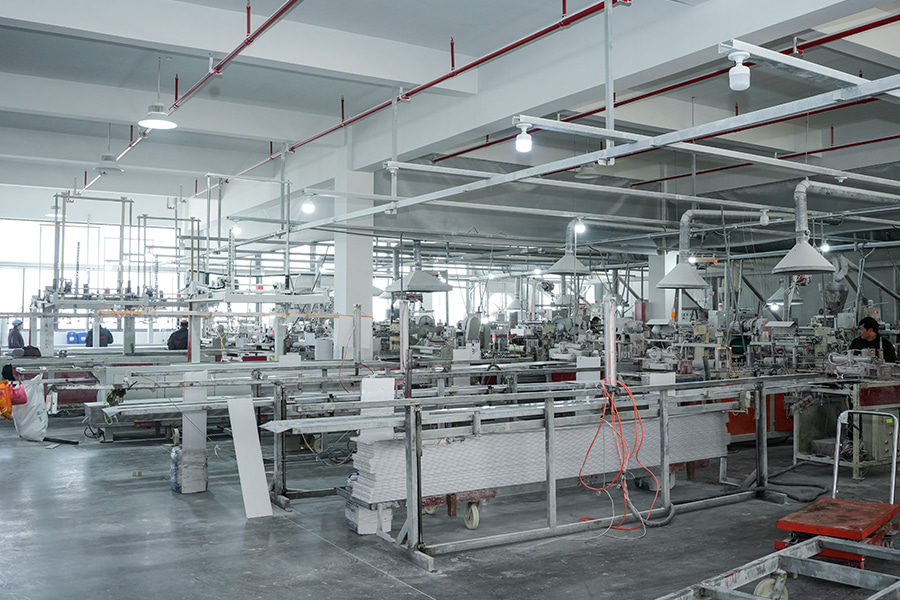

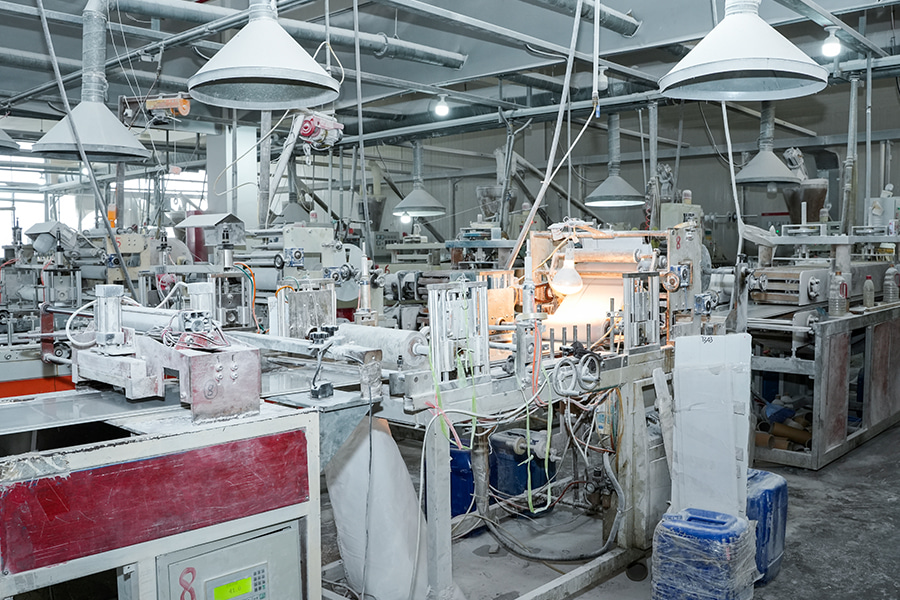

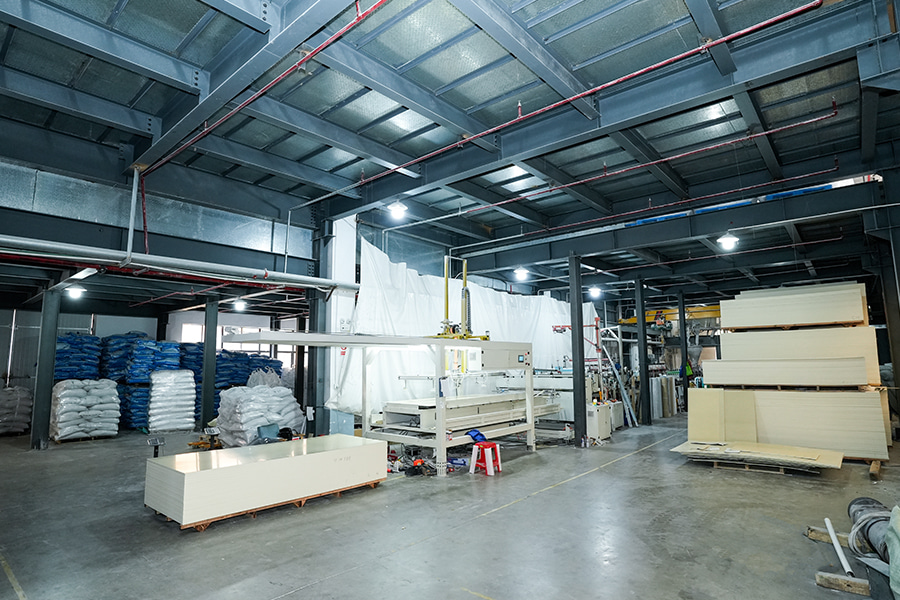

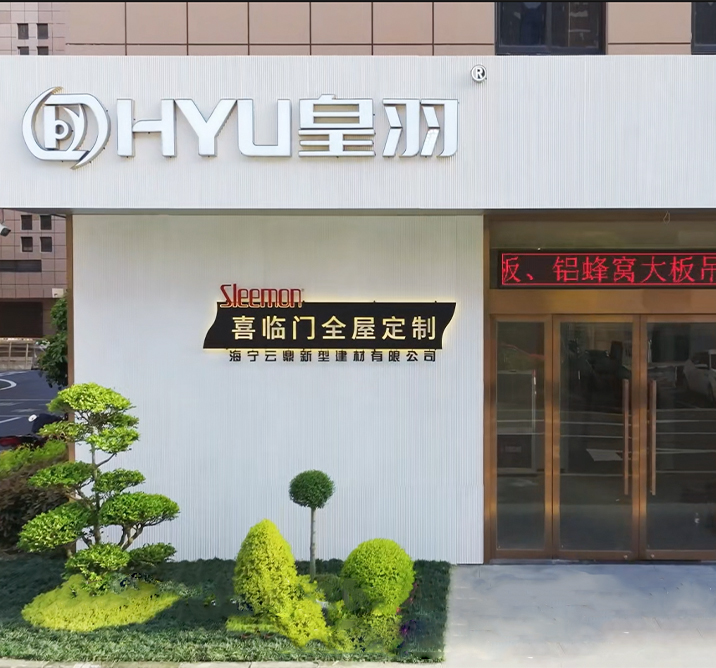

Haining Yunxi New Material Technology Co., Ltd. is a modern science and technology all-round enterprise focusing on the research and development, production, manufacturing, promotion and sales of panel , ceiling, electrical appliances, flooring and so on. It is located in Yuanhua Town, Haining City, Zhejiang Province, the origin of ceiling in China. The company has 2 factories, nearly 20,000 square meters.The company has long been focusing on the independent research and development of panel and flooring, with the abundant product system in the industry. It can not only fully meet the needs of various styles of home decoration, but also meet the needs of various engineering projects, and is deeply loved and favored by the majority of consumers.
