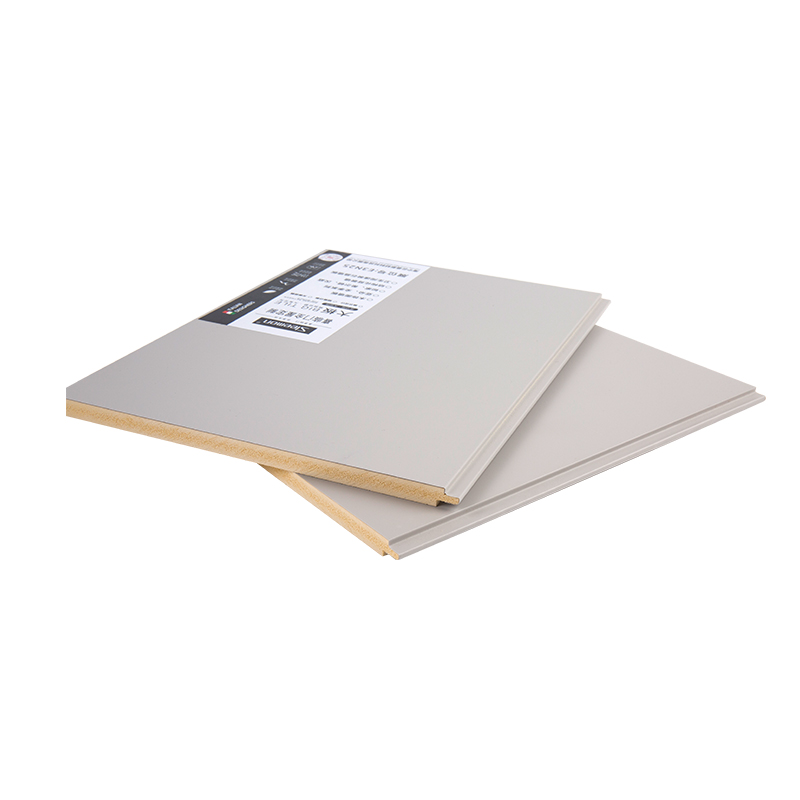

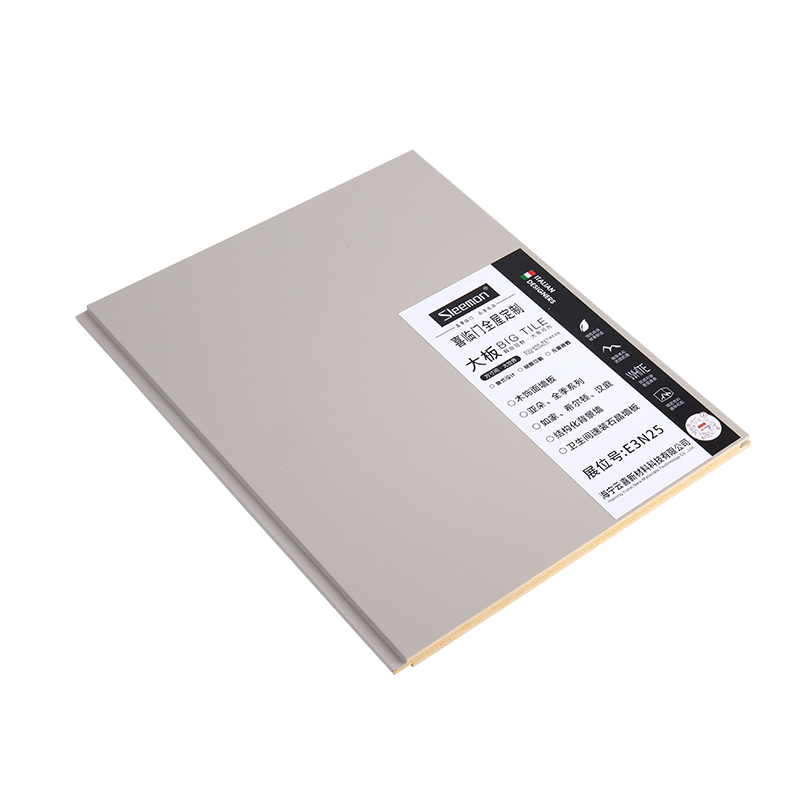

Bathroom Quick-Install Wood Veneer Foam Wall Panel

Bathroom Series

Bathroom Quick-Install Wood Veneer Wall Panels Foam Panels

9 mm Thickness

0.85 g/cm³ Density

122 cm Width

11 Length Options

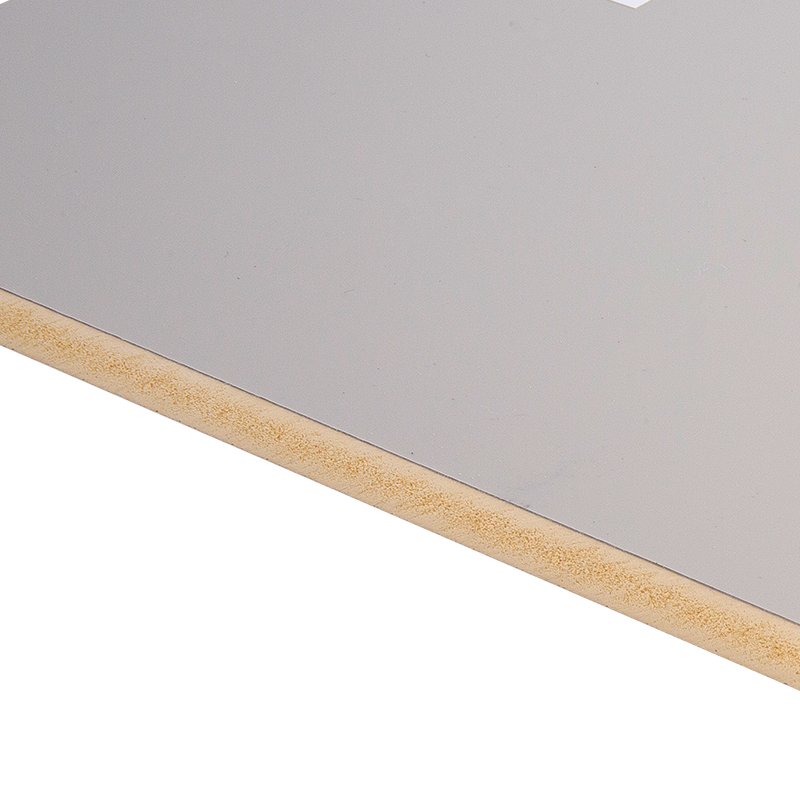

This bathroom-grade foam panel is manufactured from WPC with a dense core formulation at 0.85 g/cm³ density. The 9 mm thickness provides structural rigidity for wall mounting in high-humidity environments. Panel width is 122 cm with length options from 2.44 m to 4.0 m in eleven increments. The wood veneer surface replicates natural wood aesthetics while the closed-cell structure prevents moisture penetration. Suitable for bathroom wall cladding, shower surrounds, and wet area installations where moisture resistance and quick installation are specified.

A

Core Advantages

Waterproof Core: Closed-cell WPC structure with water absorption below 0.5 percent prevents swelling, warping, and mold growth in wet environments.

Quick Installation: Lightweight 0.85 g/cm³ density allows single-person handling. Direct adhesive mounting reduces labor time compared to traditional tile or stone.

Wood Veneer Aesthetic: High-definition printed wood grain texture provides natural appearance without the maintenance requirements of real wood in humid conditions.

Dimensional Stability: Linear expansion coefficient of 0.045 mm per meter per degree Celsius ensures panel integrity across seasonal temperature changes.

Wide Format Coverage: 122 cm width reduces panel joints and potential leak points in wet areas.

T

Technical Specifications

Composition Wood-Plastic Composite (WPC)

Thickness 9 mm ±0.2 mm

Density 0.85 g per cubic centimeter

Width 122 cm

Length options 2.44 / 2.6 / 2.7 / 2.8 / 2.9 / 3.0 / 3.2 / 3.4 / 3.6 / 3.8 / 4.0 m

Water absorption Less than 0.5 percent (24h immersion)

Flexural strength 32 MPa at 23 degrees Celsius

Fire rating Class B1 (self-extinguishing)

Formaldehyde emission E0 grade (less than 0.05 mg/m³)

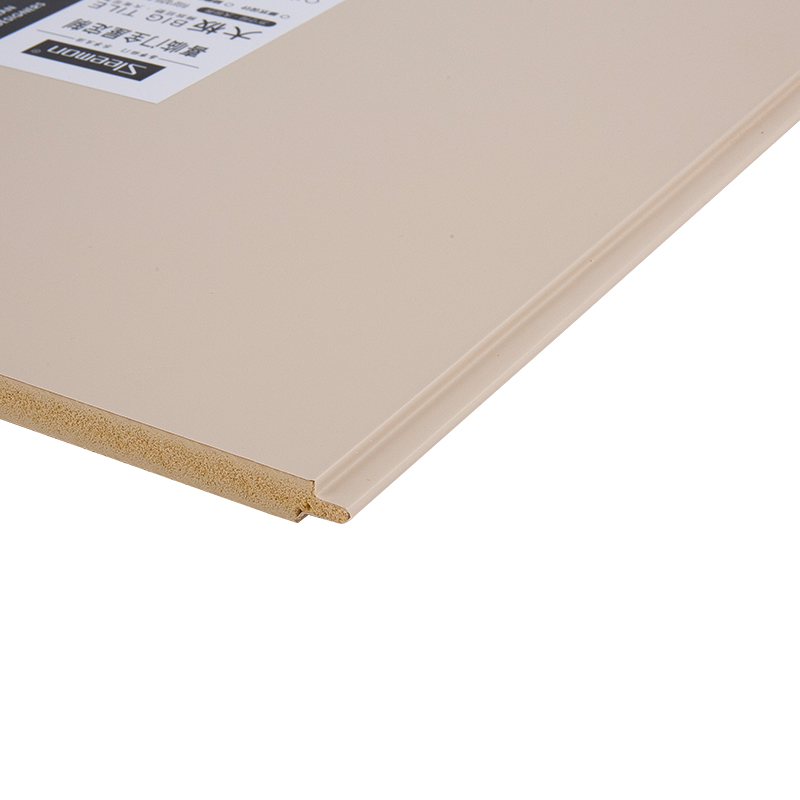

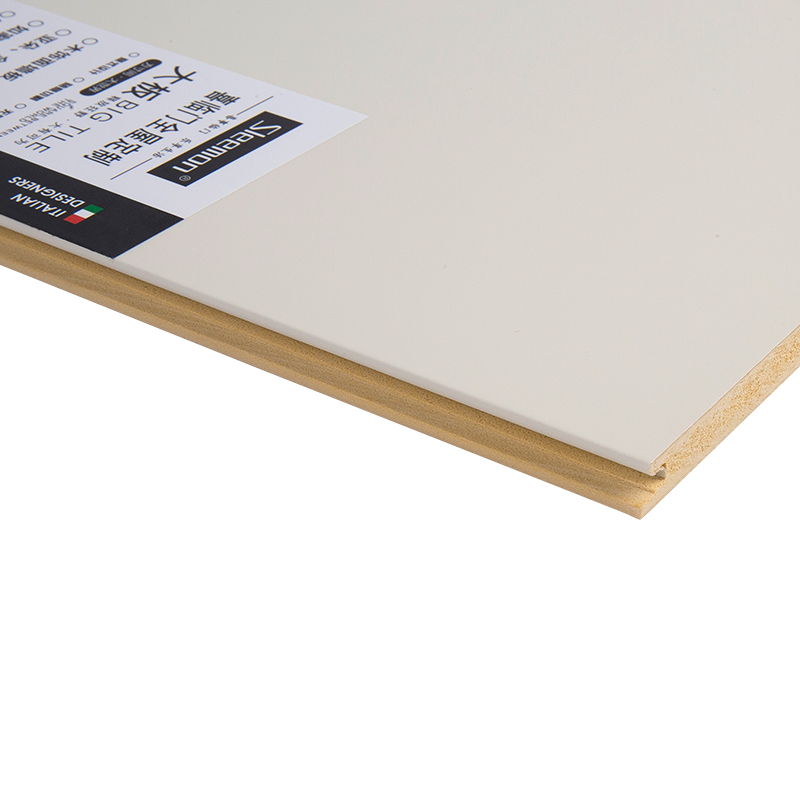

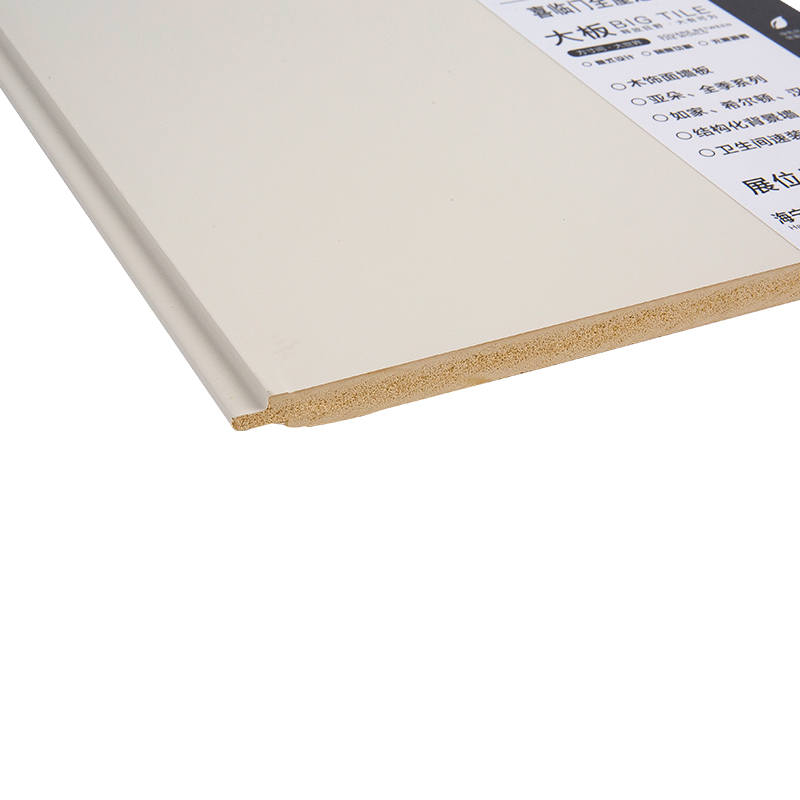

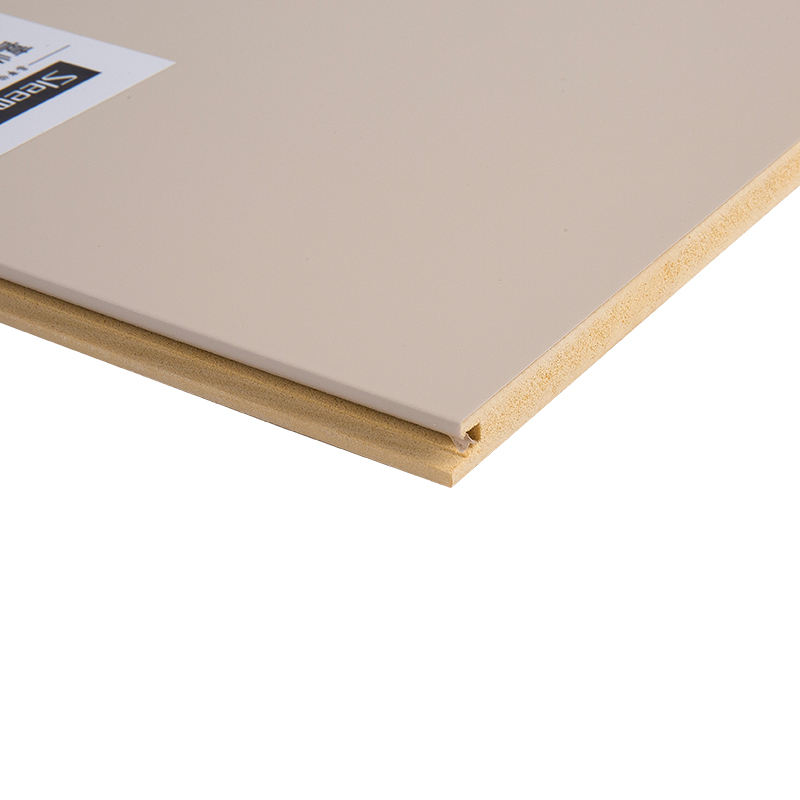

Edge profile Tongue-and-groove

Product Characteristics

01

Moisture barrier: Non-porous surface prevents water absorption and resists mold colonization in continuous high-humidity conditions.

02

Installation method: Direct adhesive bonding using polymer-modified cementitious adhesive or polyurethane construction adhesive.

03

Weight per panel: Approximately 13 to 17 kg depending on length, manageable for two-person installation.

04

Surface hardness: Shore D rating of 62 plus minus 2, resistant to impact from daily bathroom use.

05

Color consistency: UV-stabilized pigmentation throughout material cross-section for long-term appearance retention.

Application Scenarios

Residential bathroom wall cladding

Shower surrounds and wet zones

Commercial locker room walls

Hotel bathroom vanity walls

Spa and wellness facility interiors

Residential laundry rooms

Kitchen backsplash areas

Healthcare facility bathroom walls

Bathroom WPC Foam Panel Installation Scene

Application Scene

Bathroom wall cladding with wood veneer finish, showing seamless panel joints and moisture-resistant surface. Suitable for residential and commercial wet area installations.

Frequently Asked Questions

Can these panels be installed directly over existing tile? ▼

Yes. The panels can be installed over existing tile if the substrate is clean, structurally sound, and free of loose tiles. Use polymer-modified cementitious adhesive for bonding. For uneven surfaces, leveling compound may be required before installation.

How to seal panel joints in shower areas? ▼

Use neutral-cure silicone sealant along all panel joints and edges in wet areas. Apply sealant after panel installation and allow 24 hours curing time before water exposure. The tongue-and-groove profile provides initial moisture resistance.

What cleaning products are safe for the wood grain surface? ▼

Use mild, pH-neutral detergents with water and a soft cloth. Avoid abrasive cleaners, bleach, ammonia-based products, or scouring pads which may damage the wood grain surface. Isopropyl alcohol (diluted 1:3 with water) can be used for stubborn stains.

What is the recommended adhesive for bathroom installations? ▼

For wet areas, use polymer-modified cementitious tile adhesive (Type C2-S1 or C2-S2) or two-component polyurethane adhesive. These provide water-resistant bonding and accommodate minor substrate movement. Apply adhesive evenly using a notched trowel.

Storage and Installation Notes

Store panels flat on level surface, stack height under 1.2 meters. Acclimate for 48 hours at 15 to 30 degrees Celsius before installation. For bathroom installations, seal all panel edges and joints with silicone. Warranty: 10 years against manufacturing defects under standard interior conditions.

Composition:	WPC
Thickness (mm):	9
Density (g/cm³) or weight:	0.85
Width (cm):	122
Length (m):	2.44/2.6/2.7/2.8/2.9/3/3.2/3.4/3.6/3.8/4
Seam:	/
The shape of the hole:	/
