The Double Column PVC Soffit Panel is a specialized architectural component designed for the underside of roof eaves, porches, and ceilings. This specific configuration features a 30.5cm (12-inch) width, structured into two distinct columns to enhance structural rigidity and visual symmetry. With a wall thickness of 0.9mm to 1.2mm and customizable lengths, these panels provide a protective barrier for the roof rafters, preventing the ingress of moisture, pests, and debris. The PVC material is engineered to withstand long-term exposure to external environments without the need for periodic painting or chemical preservation treatments common with wood or metal alternatives.

Double Column PVC Soffit Panels

Core Technical Specifications

Profile Design: Double column visual configuration
Width: 30.5cm (fixed)
Thickness Range: 0.9mm - 1.2mm
Length: Custom manufacturing based on project dimensions
Material Type: Impact-resistant Polyvinyl Chloride (PVC)

Mechanical and Material Characteristics

Airflow Management: Available in solid or perforated formats to facilitate attic ventilation and moisture evaporation.
Deformation Resistance: The double-column geometry increases the moment of inertia, reducing sagging between support points.
Surface Integrity: Resists chipping, flaking, and scratching due to the homogenous distribution of color throughout the material.
Fire Performance: Naturally flame-retardant properties with self-extinguishing characteristics in accordance with standard building safety codes.

Technical Comparison and Advantages

Feature Category	Technical Observation
Moisture Absorption	Rate of <0.1%, preventing structural rot and mold colonization in eaves.
Structural Load	Low-density profile minimizes the weight placed on the roof overhang support system.
Chemical Resistance	Inert to airborne pollutants, salt spray, and typical household cleaning agents.
UV Exposure	Incorporates titanium dioxide (TiO2) to reflect solar radiation and prevent polymer brittleness.

Application Contexts

Roof Eaves and Overhangs: Standard application for residential and commercial roofing systems to finish the soffit area.

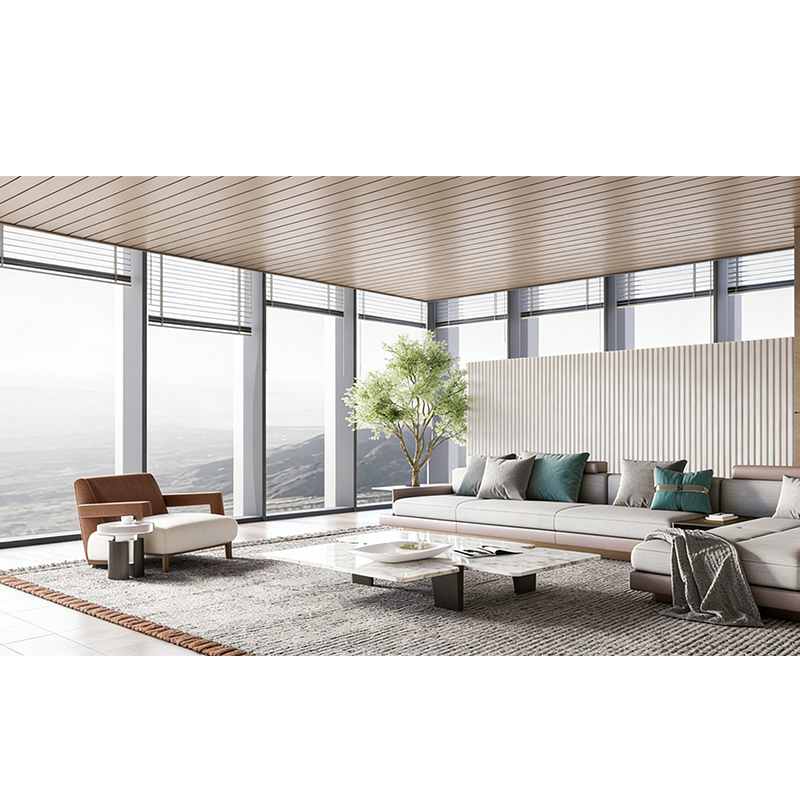

Porch and Patio Ceilings: Provides a uniform surface for outdoor covered areas.
Gable Ends: Vertical or horizontal installation for transition areas between rooflines and walls.
Industrial Canopies: Durable lining for exterior walkways and loading bay shelters.

Storage and Technical Considerations

Storage Alignment: Store panels in their original packaging on flat, level surfaces. Vertical leaning can lead to permanent bowing of the PVC profile.
Thermal Movement: When installing, ensure a 6mm gap is maintained at all termination points to accommodate the linear thermal expansion coefficient of PVC.
Fastening Method: Use wide-head siding nails or screws. Fasteners should be centered in the nailing slots and not driven flush to allow the panel to "float" during temperature cycles.
Cutting Instructions: Use a fine-tooth circular saw blade installed in reverse or aviation snips for precise edges in cold temperatures to prevent cracking.
