The 12-inch PVC siding panel is a precision-engineered exterior cladding solution designed for large-scale building envelopes. With a standardized width of 30.5cm (12 inches) and a thickness profile ranging from 0.9mm to 1.2mm, these panels offer significant surface coverage, reducing the number of visible joints and streamlining the installation process. Manufactured from high-density polyvinyl chloride, the material is formulated to resist environmental degradation, including moisture absorption and surface oxidation. The customizable length ensures that the panels can be adapted to specific architectural dimensions, minimizing material waste and ensuring structural continuity across expansive wall surfaces.

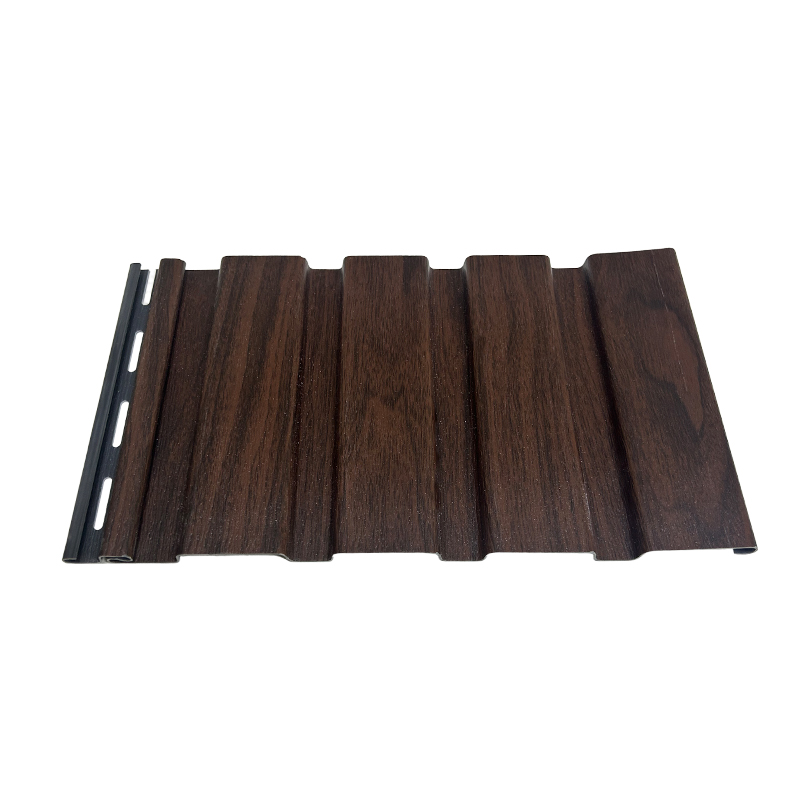

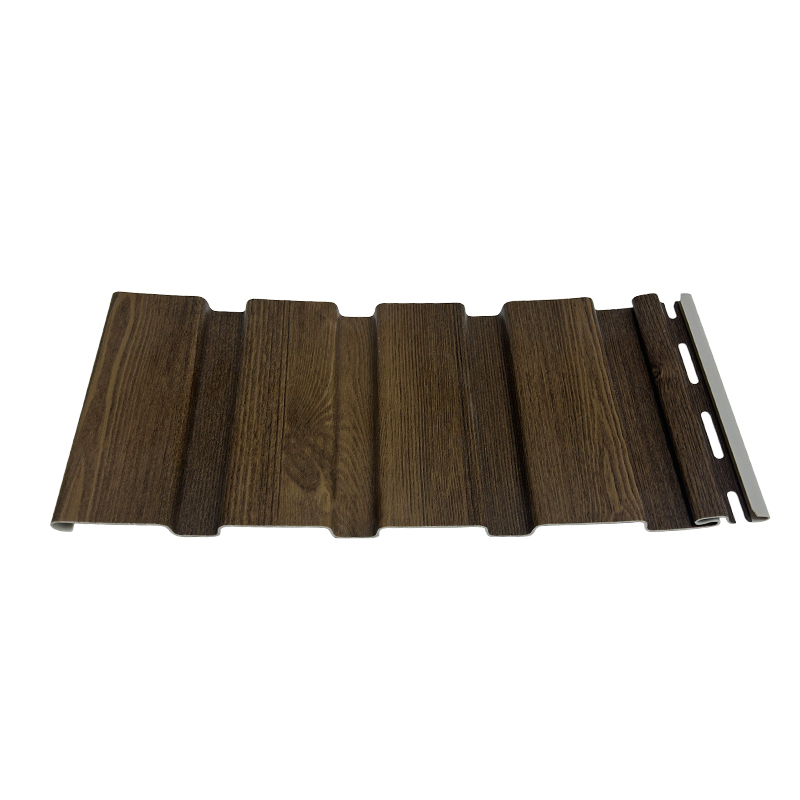

12-Inch PVC Siding Panels for Exterior Wall Systems

Core Specifications

Nominal Width: 30.5cm (12 inches)
Thickness Range: 0.9mm - 1.2mm
Length: Custom tailored to project specifications
Material Composition: Rigid Polyvinyl Chloride (PVC)

Technical Features

Impact Resistance: The 0.9-1.2mm gauge thickness provides mechanical strength against physical impacts and high wind pressures.
Thermal Stability: Engineered to maintain structural form during temperature fluctuations, minimizing the risk of buckling or warping.
Chemical Inertness: Resistant to corrosive elements, salt spray, and acidic rain, making it suitable for coastal and industrial environments.
Color Retention: UV-stabilized pigments are integrated into the polymer matrix to mitigate fading caused by prolonged solar exposure.

Comparative Advantages

Technical Metric	Performance Data
Moisture Permeability	Non-porous surface prevents water retention and biological growth.
Weight-to-Strength Ratio	Low density reduces structural load while maintaining rigid exterior protection.
Installation Efficiency	The 12-inch width covers 20-30% more area per panel compared to standard narrower profiles.
Lifecycle Costs	Eliminates the need for recurring surface treatments, painting, or specialized sealing.

Application Domains

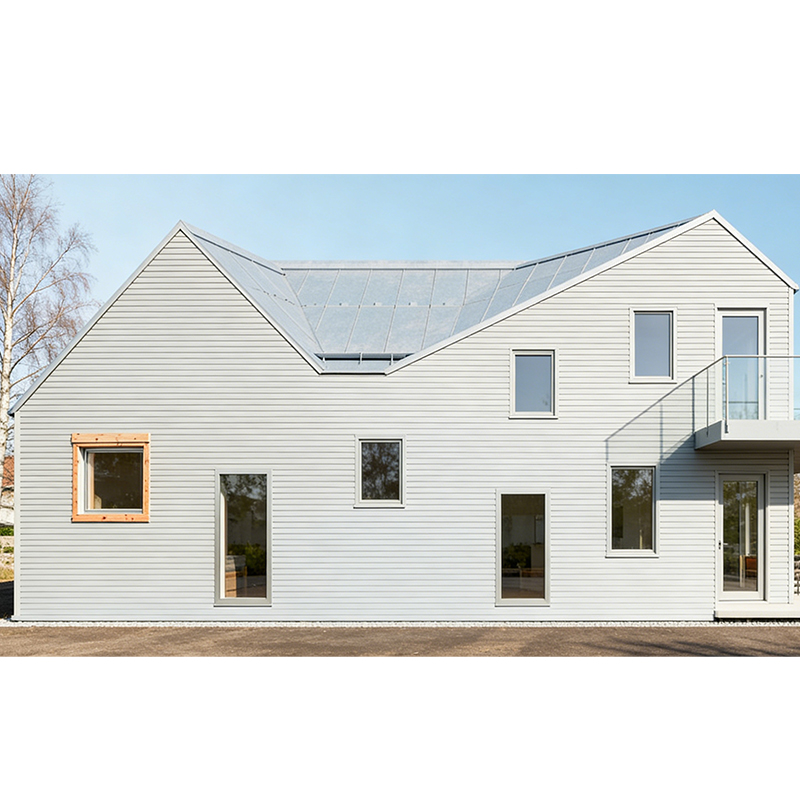

Commercial Facades: Cladding for warehouses, retail outlets, and office complexes requiring rapid installation.
Residential Developments: Exterior finishing for modern housing projects and multi-story residential units.
Industrial Facilities: Protection for structures exposed to humid or chemically active atmospheres.
Prefabricated Housing: Integration into modular construction systems due to its lightweight and customizable dimensions.

Logistics and Installation Guidelines

Storage Requirements: Panels must be stored on a continuous flat surface to prevent permanent deformation. Ensure the storage area is ventilated and protected from extreme heat buildup.
Fastening Protocol: Utilize stainless steel or galvanized fasteners. Fasteners should be positioned in the center of the pre-punched slots to allow for natural thermal expansion.
Thermal Clearance: Maintain a minimum clearance of 6mm to 9mm at all junctions and trim pieces to accommodate linear material movement.
Maintenance: Periodic cleaning with low-pressure water and standard surfactants is sufficient to remove surface particulates and maintain surface clarity.
