WPC TECHNOLOGY

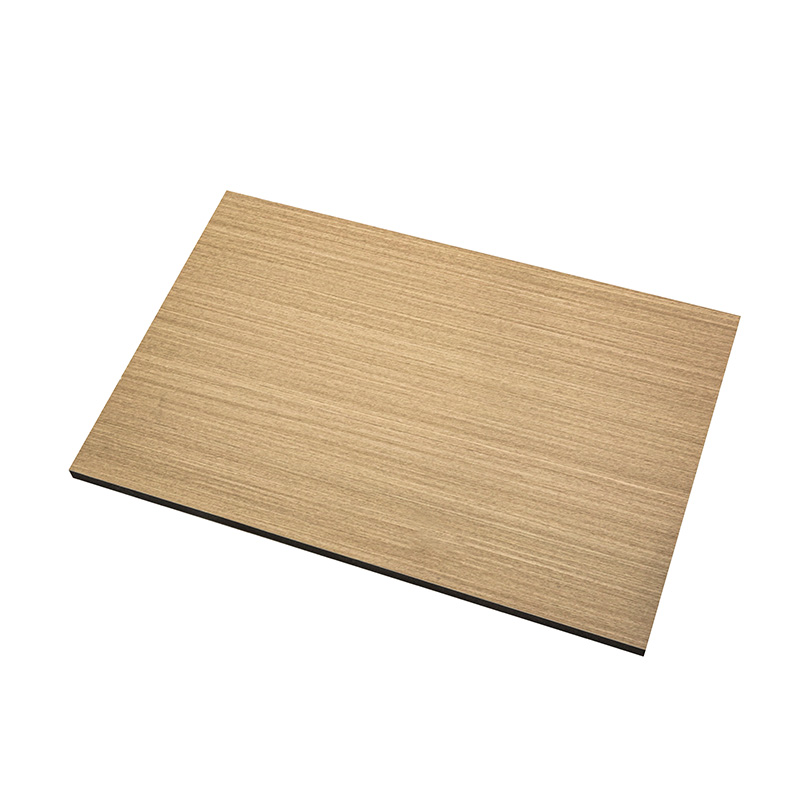

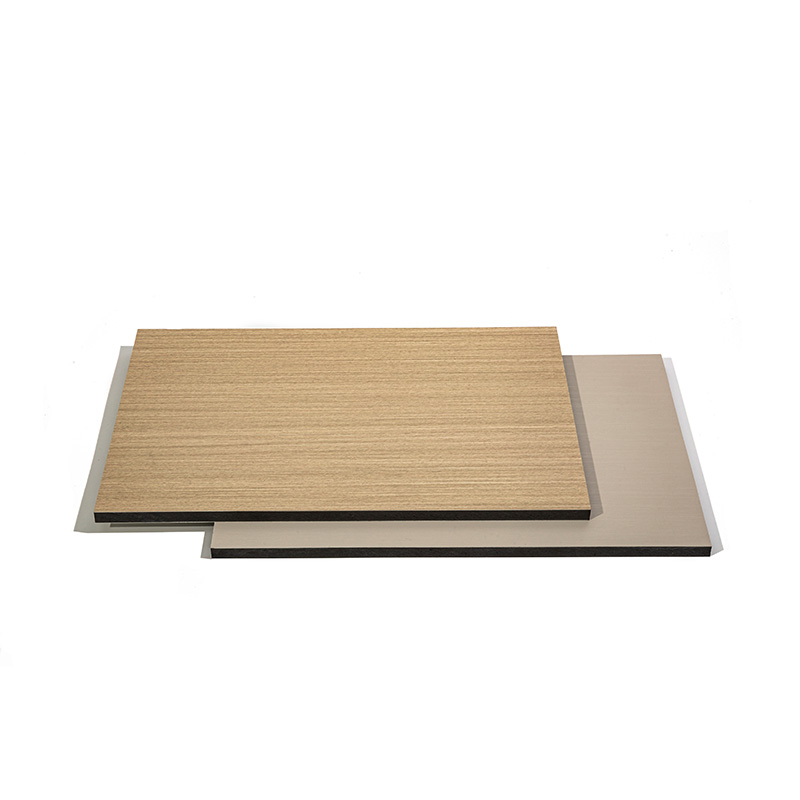

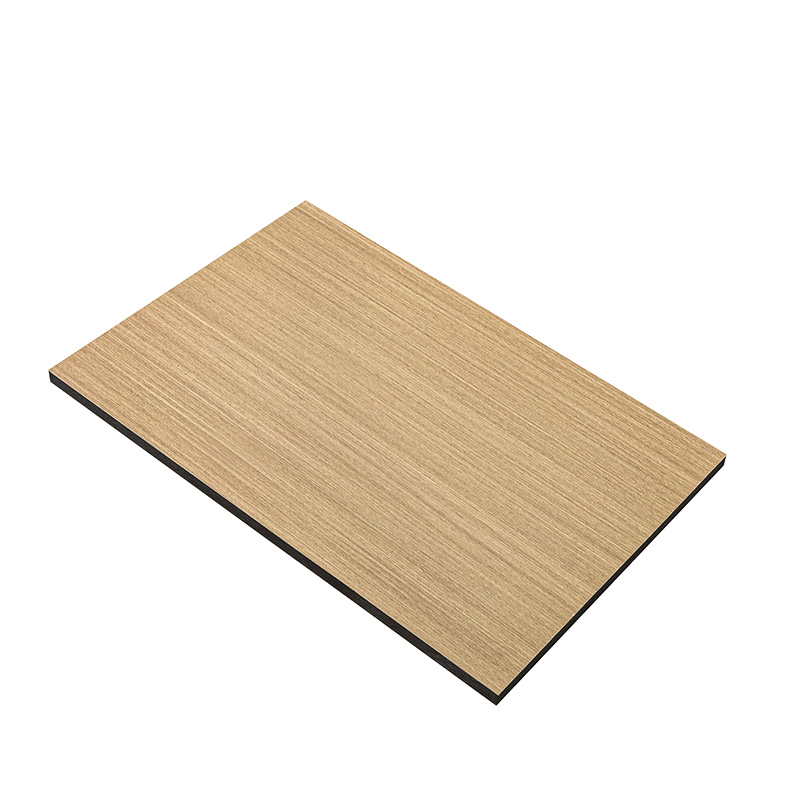

Eco-Friendly Moisture-Proof Natural WPC Wall Panel

Engineered wood-plastic composite | 8mm thickness | 122cm width | 7 length options

This wall panel system is manufactured from wood-plastic composite (WPC) material combining recycled wood fibers and thermoplastic polymers. The 8 mm thickness provides structural rigidity for vertical wall applications. Panel width is 122 cm with available lengths ranging from 2.44 m to 4.0 m in seven options: 2.44 m, 2.6 m, 2.8 m, 3.0 m, 3.2 m, 3.6 m, and 4.0 m. The natural wood grain texture replicates organic surface characteristics while the closed-cell WPC formulation prevents moisture absorption. Suitable for interior wall cladding in residential and commercial spaces where humidity control is required.

8 mm Thickness

122 cm Width

7 Length Options

0.5% Water Absorption

Core Functional Advantages

Moisture-proof composition: WPC formulation with water absorption rate below 0.5 percent prevents swelling, warping, or fungal growth in environments with relative humidity up to 90 percent.

Material efficiency: Contains recycled wood fiber content between 50 and 60 percent by weight, reducing virgin plastic consumption.

Dimension variety: Available in 7 length options to match different wall heights without horizontal joints.

Wide format coverage: 122 cm width reduces number of panel joints per square meter compared to standard narrow panels.

Surface durability: Embossed wood grain texture with UV-cured topcoat resists scratching and fading under indirect lighting conditions.

Technical Specifications

Composition ratio

50-60% wood fiber, 35-45% thermoplastic, 5-8% additives

Density

1.15 to 1.25 g/cm³

Water absorption

Less than 0.5% (ASTM D570)

Flexural strength

28 MPa minimum at 23°C

Thermal expansion

0.045 mm/m·°C

Fire classification

Class B2 (self-extinguishing)

Formaldehyde emission

E0 grade (less than 0.05 mg/m³)

Key Specifications

Composition

Wood-Plastic Composite

Thickness

8 mm ±0.3 mm

Width

122 cm

Length options

2.44 / 2.6 / 2.8 / 3.0 / 3.2 / 3.6 / 4.0 m

Surface finish

Natural wood grain embossed

Edge profile

Tongue and groove

Product Characteristics

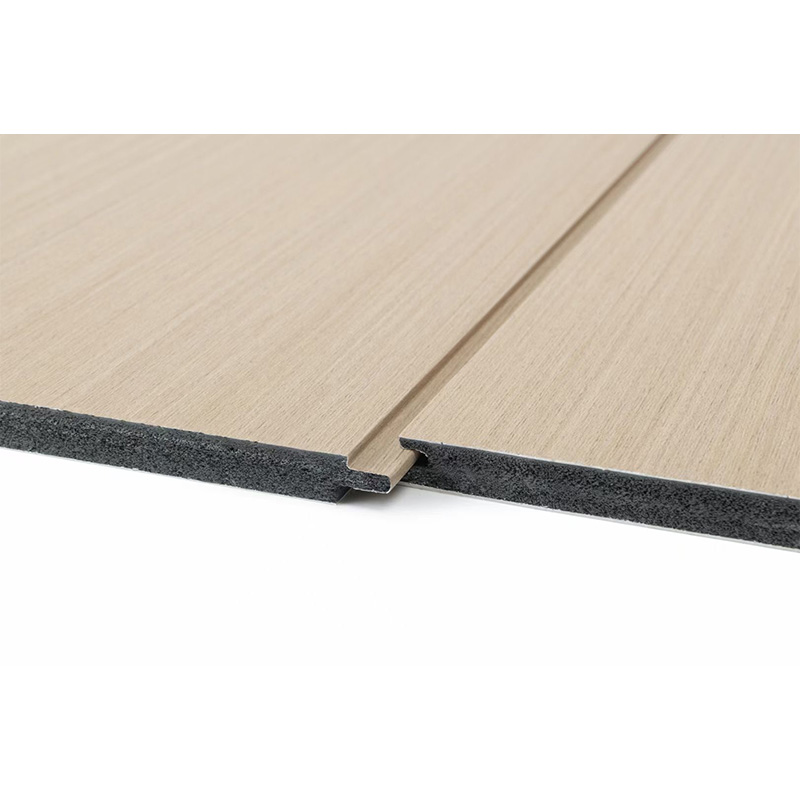

Edge joint design: Tongue-and-groove profile on longitudinal and transverse edges for continuous surface assembly.

Installation method: Direct wall mounting using adhesive or mechanical fasteners through hidden clip system.

Weight per panel: Approximately 12 to 15 kg per panel depending on length, manageable for two-person installation.

Surface hardness: Shore D rating of 60 plus minus 3, resistant to impact from daily use.

Color consistency: Throughout material cross-section with UV-stabilized surface layer.

Recyclability: End-of-life panels can be ground and reprocessed into new WPC products.

Application Scenarios

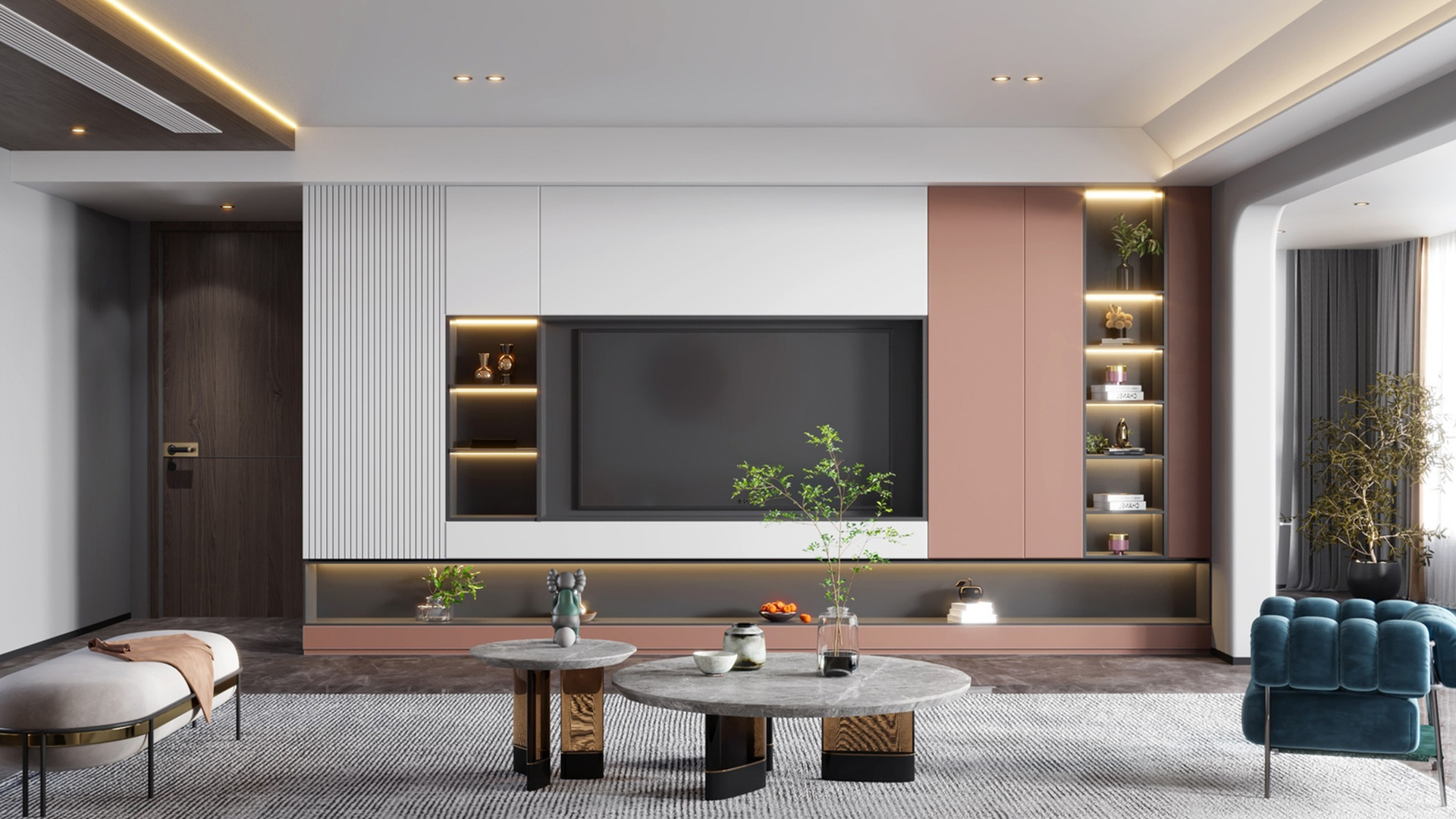

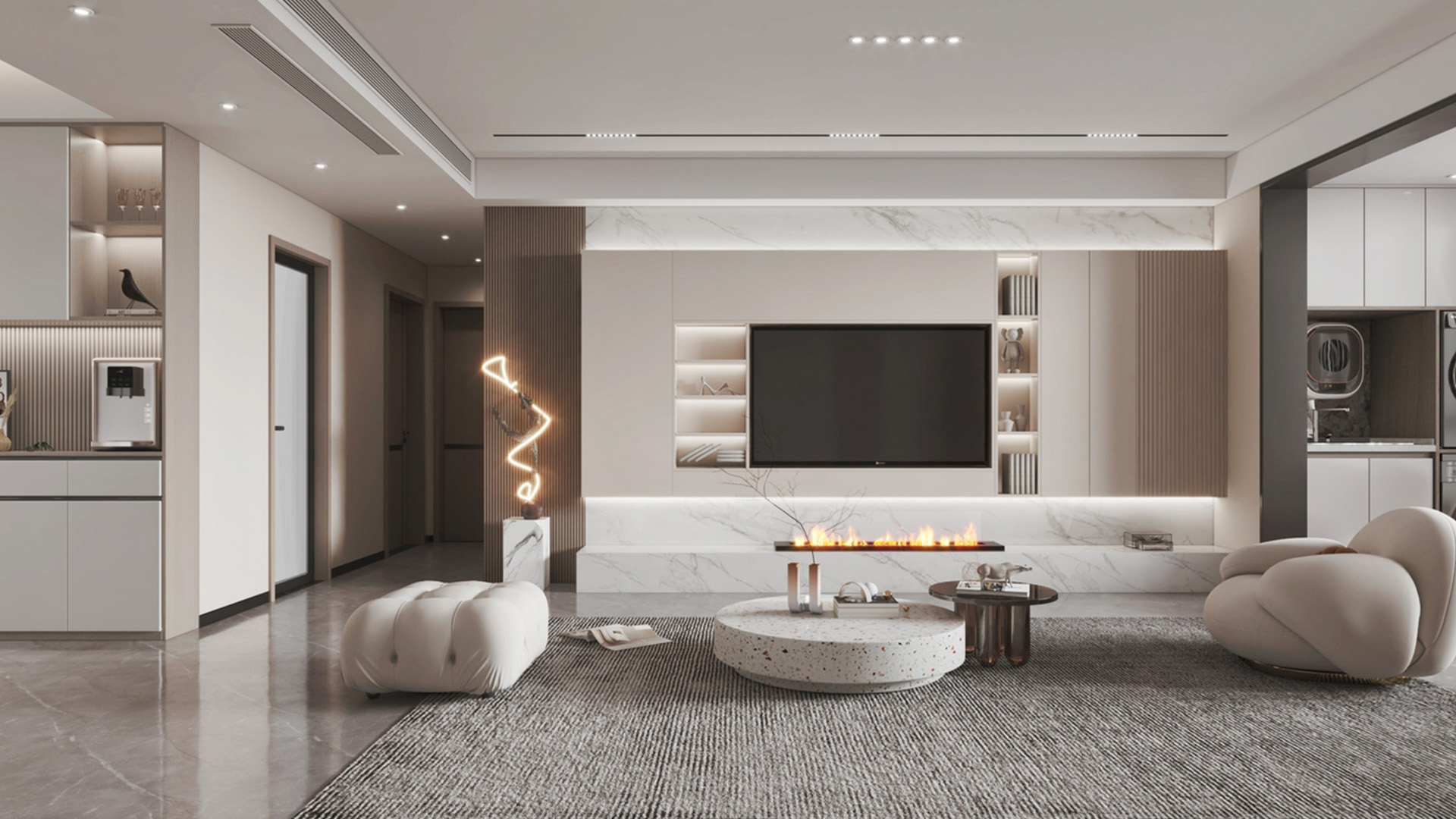

Residential living rooms and bedrooms: Provides wood grain aesthetics without maintenance requirements of natural timber.

Bathrooms and wet areas: Moisture-proof composition allows installation in shower-adjacent zones.

Kitchen walls and backsplashes: Resistance to grease, steam, and temperature fluctuations.

Commercial office spaces: Wide panels enable rapid installation over large wall surfaces.

Retail environments and showrooms: Natural wood appearance with consistent color across multiple panel batches.

Hotel lobbies and corridors: Impact-resistant surface reduces damage from luggage and foot traffic.

Installation & Material Considerations

01

Acclimation requirement: Store panels horizontally in the installation room for 48 hours at 15 to 30 degrees Celsius before fixing to allow material stabilization.

02

Substrate preparation: Wall surface must be flat within 2 mm per meter. For concrete or masonry walls, apply moisture barrier if relative humidity exceeds 75 percent.

03

Expansion gap: Leave 5 to 8 mm gap at all wall corners and fixed obstacles. Cover gaps with matching PVC trim profiles.

04

Cutting method: Use carbide-tipped saw blade with 60 teeth or more. Avoid excessive feed rate to prevent edge chipping.

Common Questions & Technical Solutions

Can WPC panels be used outdoors?	This product is formulated for interior applications. Prolonged UV exposure or freeze-thaw cycles may cause surface degradation. Outdoor-grade WPC variants are available separately.
How to clean the natural wood grain surface?	Use soft cloth with mild detergent and water. Avoid abrasive cleaners, steel wool, or high-pressure water jets which may damage the embossed texture.
What adhesive works with WPC panels?	Use solvent-free polyurethane construction adhesive or MS polymer adhesive. Avoid solvent-based contact adhesives which may soften the material.
Are the panels paintable?	Painting is not recommended as the embossed wood grain texture is integral to the panel surface. Paint adhesion may fail over time.
How to handle different wall heights?	Select length option closest to wall height without exceeding. For walls taller than 4.0 m, stack panels horizontally with staggered joints.
What is the panel weight for transport?	Approximately 2.5 to 3.0 kg per square meter. A full 4.0 m panel weighs approximately 14.6 kg.

Material Compatibility & Limitations

Operating temperature range: 0 to 50 degrees Celsius for interior applications. Avoid placement near direct heat sources exceeding 70 degrees Celsius.

Chemical resistance: Resistant to diluted acids, alkalis, and salt solutions. Not compatible with strong solvents including acetone, MEK, or chlorinated hydrocarbons.

Structural limitation: Panels are decorative cladding only. Do not use as load-bearing elements or for shelving support.

Performance Reference Data

Modulus of elasticity

3500 MPa

Thermal conductivity

0.18 W/m·K

Sound insulation

Rw 23 dB (panel alone)

Recycled content

Minimum 50 percent post-industrial

S

Storage recommendation: Keep panels in original packaging on flat, level surface. Maximum stack height: 1.2 meters. Store indoors with temperature between 5 and 35 degrees Celsius. Avoid direct sunlight exposure during storage.

Warranty reference: Manufacturer limited warranty of 8 years against manufacturing defects and material delamination under standard interior conditions. Warranty excludes improper installation, mechanical damage, or exposure to extreme environmental conditions.

Technical specifications represent standard manufacturing parameters. Variations may occur within industry tolerances. Verify compliance with local building codes and installation standards before use.

Composition:	WPC
Thickness (mm):	8
Density (g/cm³) or weight:	/
Width (cm):	122
Length (m):	2.44/2.6/2.8/3/3.2/3.6/4
Seam:	/
Shape of the hole:	/
