WPC (Wood Plastic Composite) fluted panels have become a popular choice for outdoor applications due to their durability, low maintenance, and aesthetic appeal. These panels combine the natural look of wood with the resilience of plastic, making them ideal for exterior cladding, fences, and decorative features.

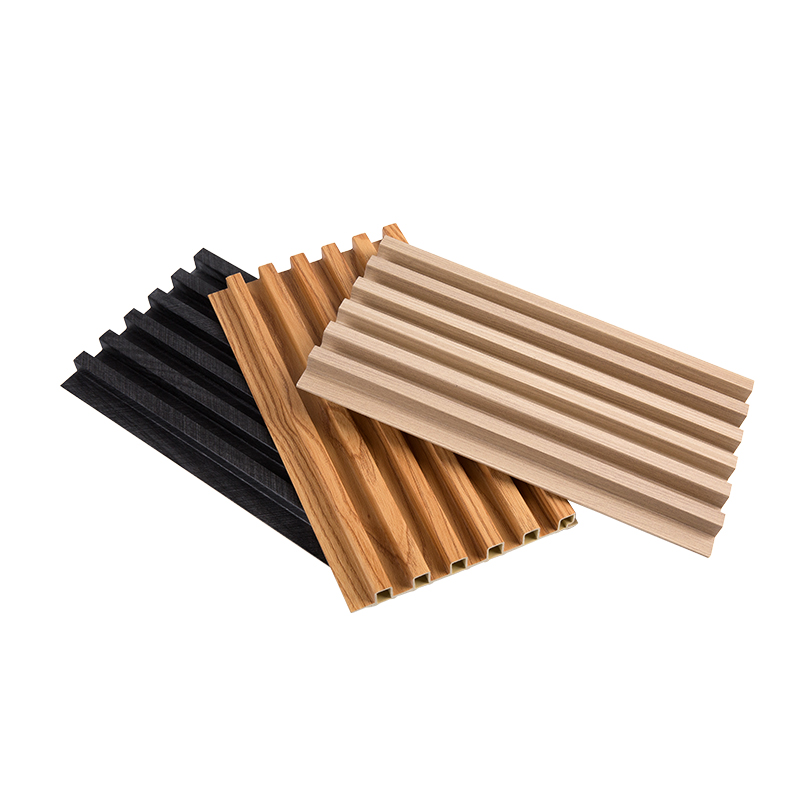

Modern Eco-Friendly Decorative Wall & Ceiling WPC Fluted Panel (Cell size 10*4.2) YXWPC16018
WPC Fluted Panel Installation: A Step-by-Step Guide
Installing WPC fluted panels is straightforward, but proper techniques ensure longevity and performance. Here’s a general installation guide:
1. Surface Preparation
Ensure the mounting surface (wood, metal, or concrete) is clean, dry, and level.
Install a waterproof barrier if needed to prevent moisture damage.
2. Framing and Support
Use aluminum or treated wood battens (typically 40mm x 20mm) spaced at 300–400mm intervals for optimal support.
3. Panel Fixing
Start from the bottom and work upwards, securing panels with stainless steel clips or screws.
Leave a 5–10mm expansion gap between panels to accommodate thermal movement.
4. Finishing Touches
Use matching trims and caps for a polished look.
Avoid over-tightening screws to prevent panel warping.
Key Tip: WPC panels are lightweight compared to traditional wood, reducing labor and installation time.
WPC Fluted Panel Dimensions: Standard Sizes and Custom Options
WPC fluted panels come in various dimensions to suit different design needs. Below are common sizes and their applications:
| Dimension Type | Standard Size (mm) | Common Use |
|---|---|---|
| Panel Length | 1800–4000 | Walls, fences, facades |
| Panel Width | 150–300 | Decorative cladding |
| Panel Thickness | 10–25 | Durability & insulation |
| Flute Depth | 5–15 | Aesthetic texture |
Comparison with Traditional Materials
| Feature | WPC Fluted Panel | Natural Wood | PVC Panel |
|---|---|---|---|
| Maintenance | Low (no painting/sealing required) | High (regular staining/sealing needed) | Low |
| Durability | High (weather/UV resistant) | Moderate (prone to rot/insects) | Moderate (can warp in heat) |
| Weight (kg/m²) | 2.5-4.0 | 5.0-7.0 | 1.8-3.0 |
| Lifespan | 15-25 years | 10-15 years | 10-20 years |
| Cost | Medium (cost-effective long-term) | High (material + maintenance costs) | Low (but shorter lifespan) |
WPC panels offer a balanced combination of strength, aesthetics, and ease of installation, making them a superior choice for outdoor applications.
